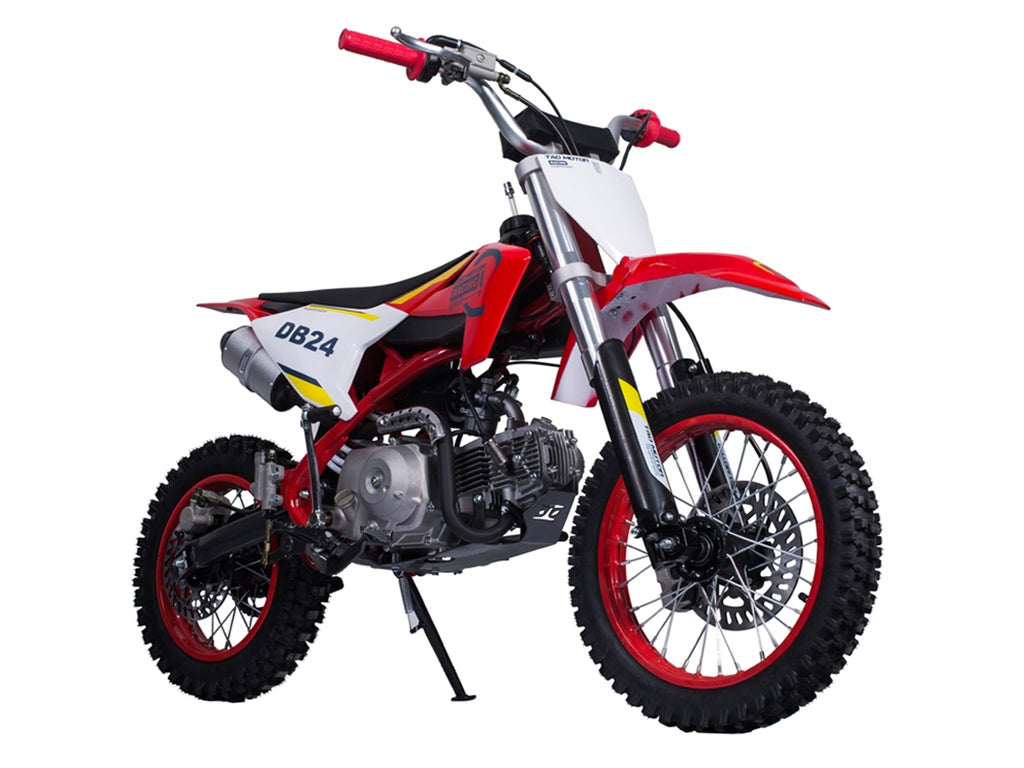

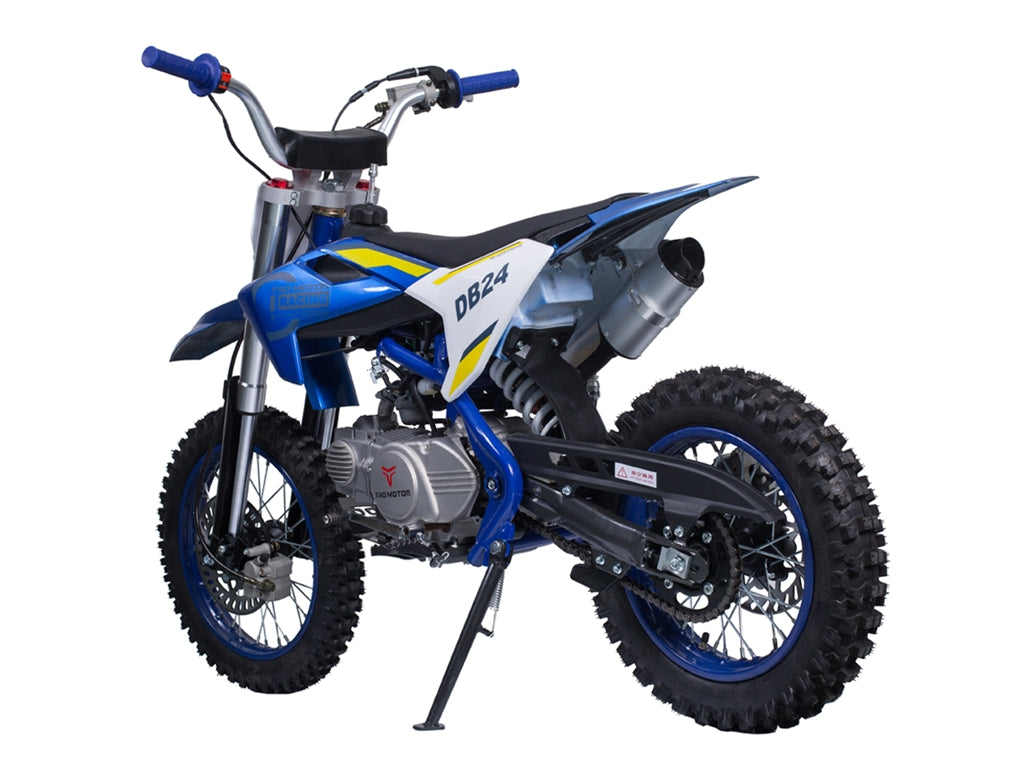

The Tao Motor DB24 is a 107cc off-road dirt bike designed for youth riders.
It features a semi-automatic transmission and kick start system.
Engine & Drive
| Specification | Detail |
|---|---|
| Engine size | 107cc |
| Engine type | 4-stroke, single-cylinder |
| Cooling | Air cooled |
| Start type | Kick start |
| Transmission | Semi-automatic |
| Drive system | Chain drive |
| Top speed | 30 MPH (50 km/h) |
| Fuel capacity | 1 gallon (4L) |
| Ignition | CDI |
Brakes & Suspension
| Specification | Detail |
|---|---|
| Front brake | Hydraulic disc (hand brake) |
| Rear brake | Hydraulic disc (hand brake) |
| Front suspension | Not specified |
| Rear suspension | Not specified |
Wheels & Tires
| Specification | Detail |
|---|---|
| Front tire | 2.50 - 14 |
| Rear tire | 3.0 - 12 |
| Rims | Front: 1.40 x 14 (steel) / Rear: 1.80 x 12 (steel) |
Dimensions
| Specification | Detail |
|---|---|
| Length | 59 inches (1500 mm) |
| Width | 28 inches (720 mm) |
| Height | 39 inches (1000 mm) |
| Seat height | 28 inches (700 mm) |
| Wheelbase | 41 inches (1040 mm) |
| Ground clearance | 8.7 inches (220 mm) |
| Dry weight | 131 lbs (59.5 kg) |
| Gross weight | 161 lbs (73 kg) |
| Weight capacity | Not specified |
Street / Equipment Features
-
Available colors: Blue, Green, Orange, Red
Assembly & Delivery
• Ships 70% assembled inside metal crate
• Certified technician required for assembly and setup
• Liftgate included
• Residential delivery included
• Shipping insurance included
• Delivery appointment included
Warranty
30-day replacement parts only
Labor and returns not covered
