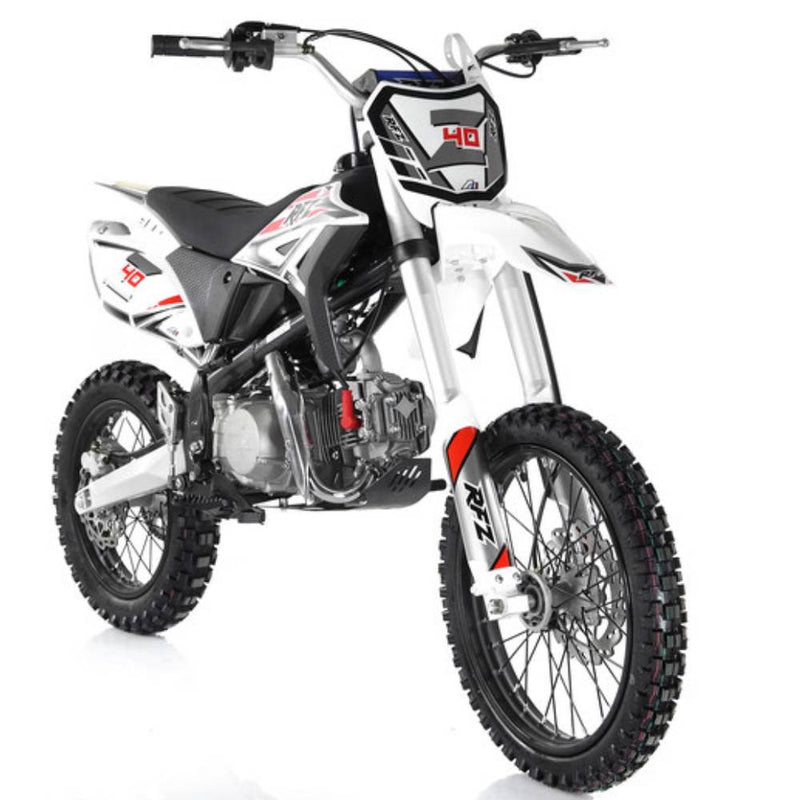

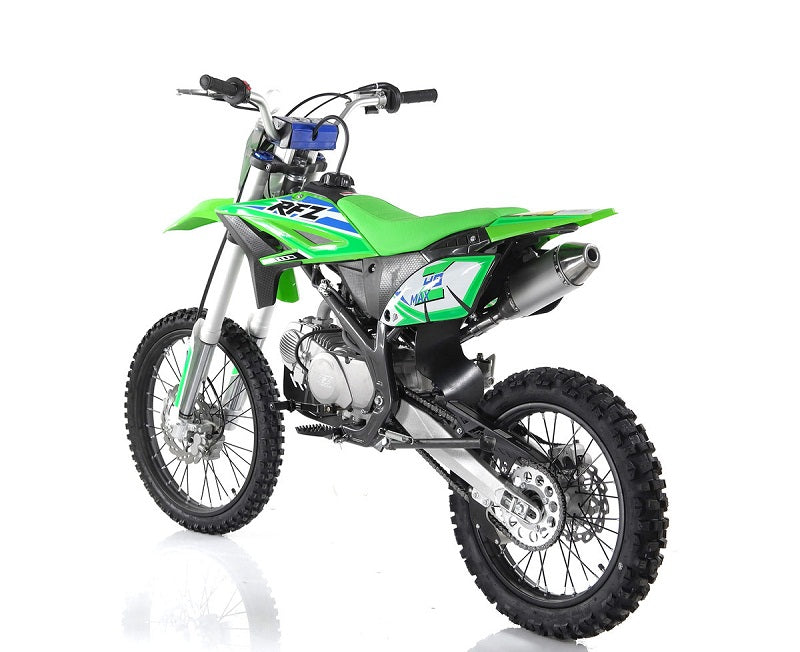

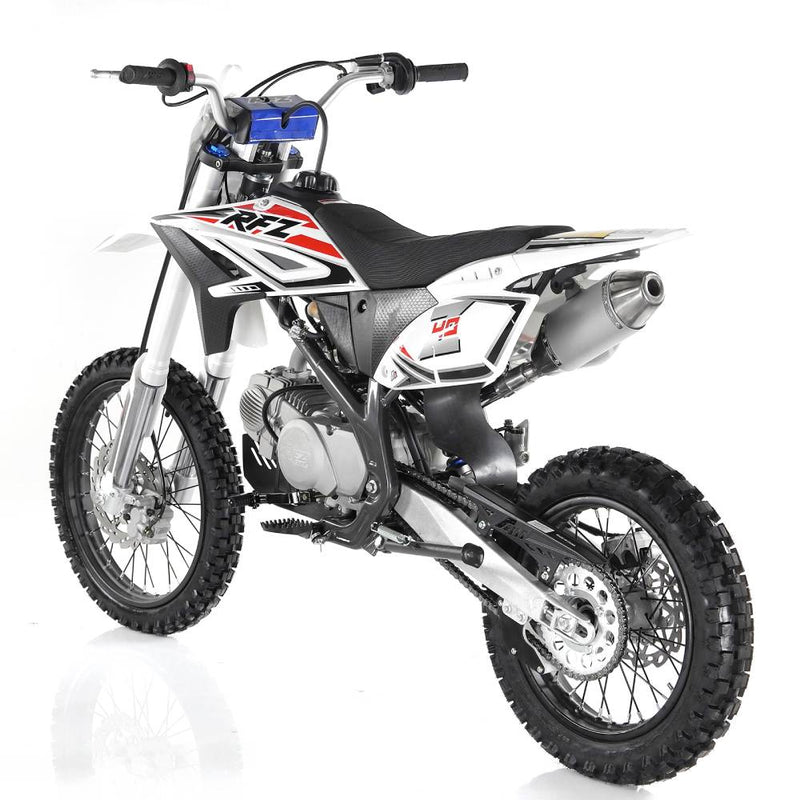

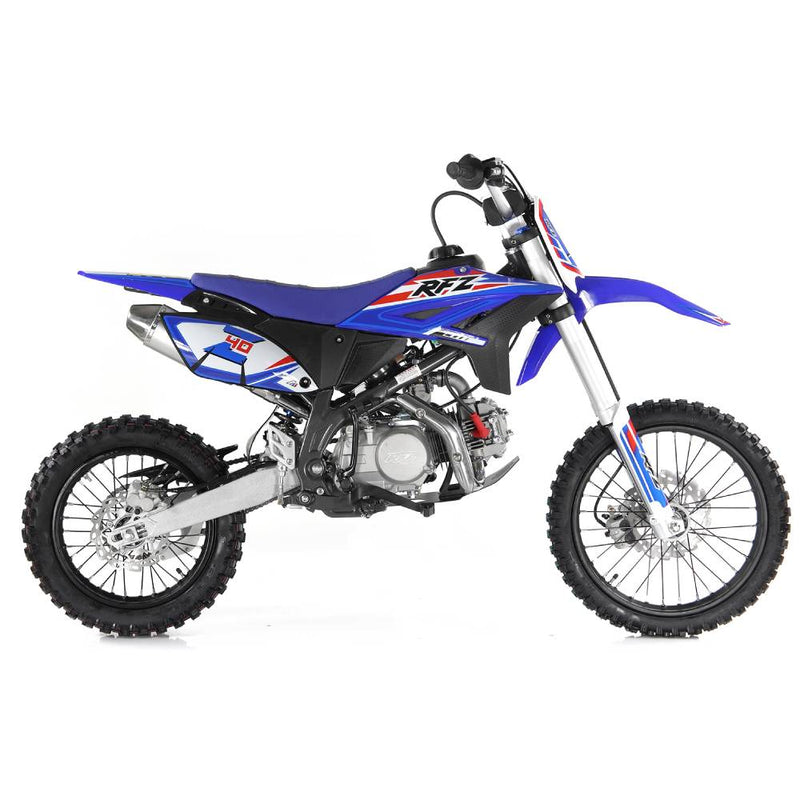

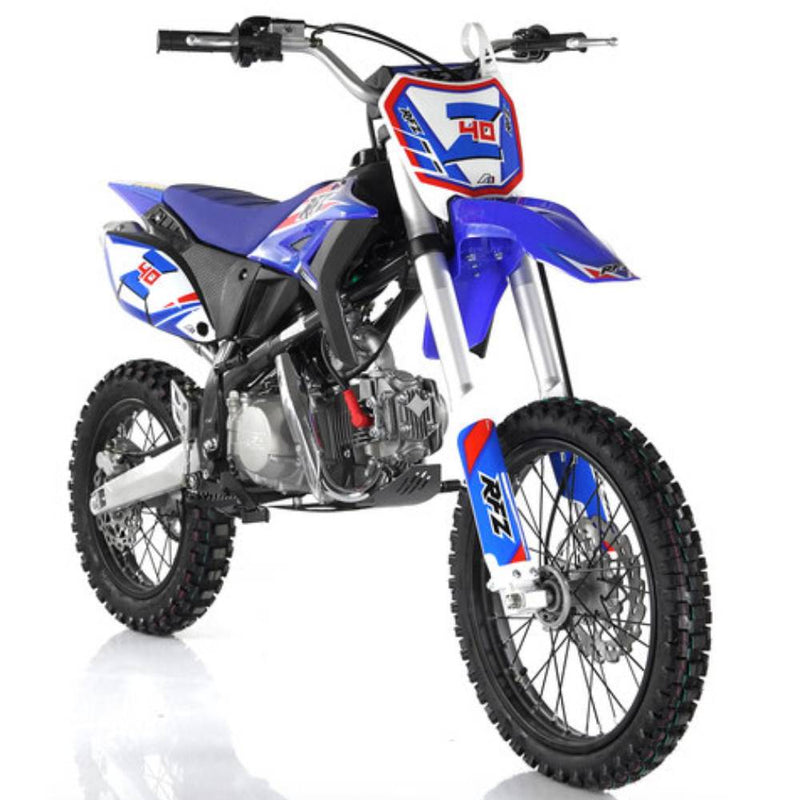

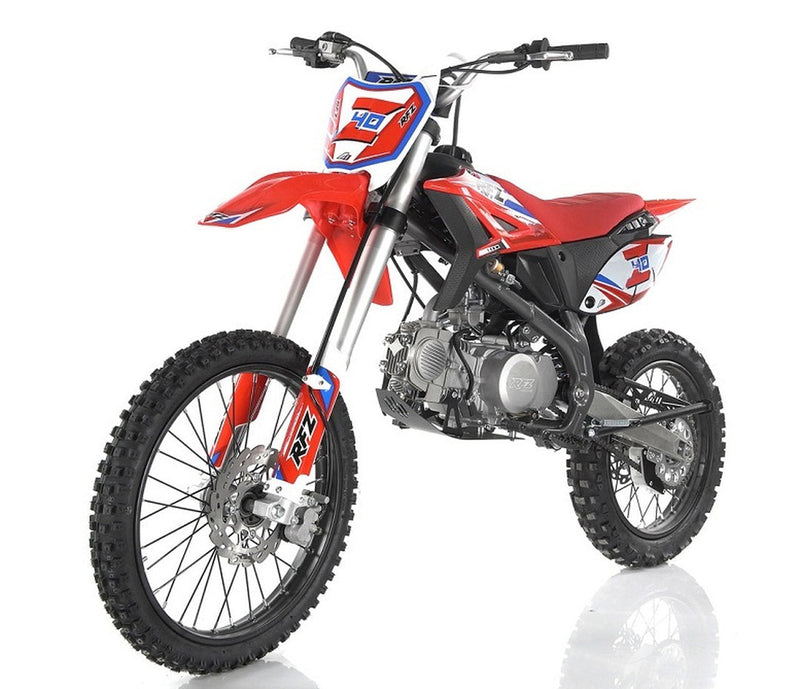

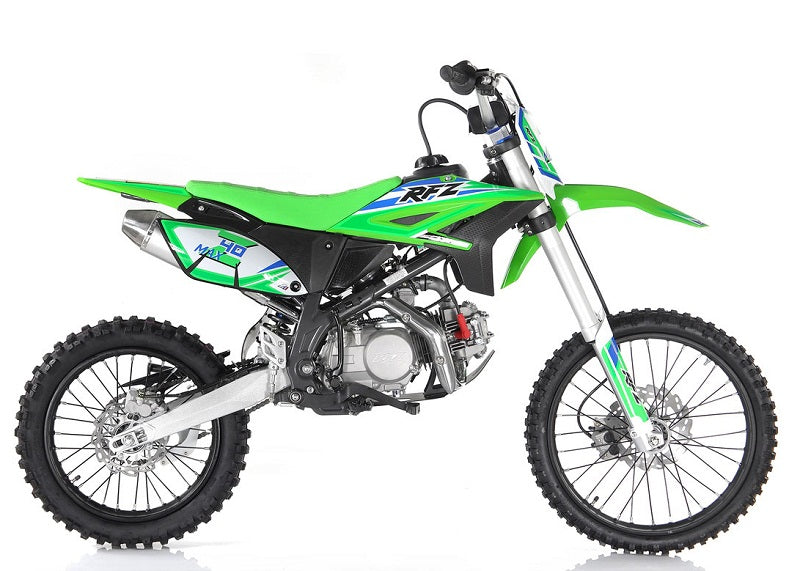

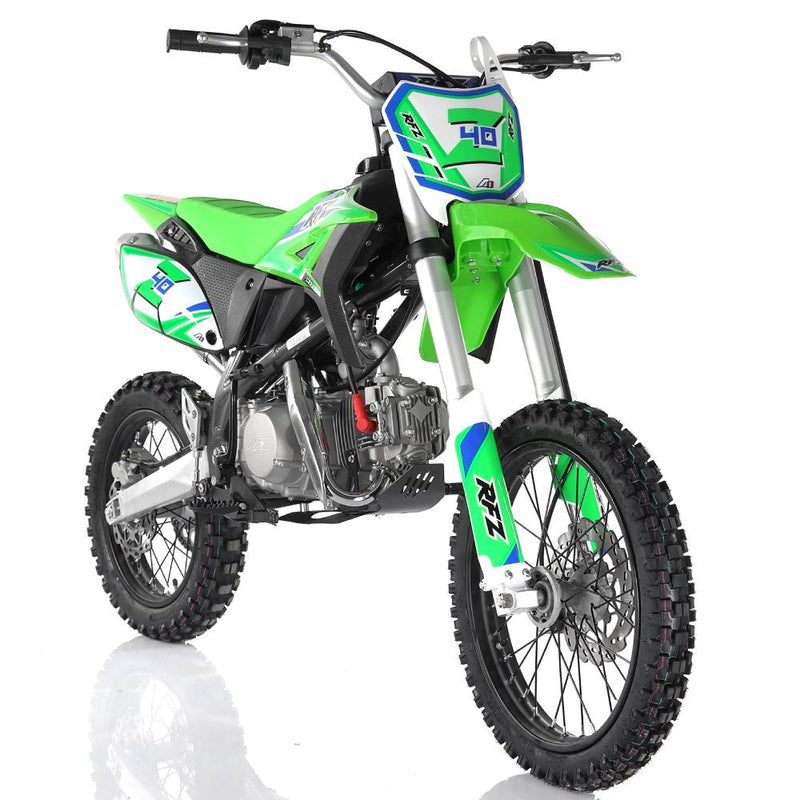

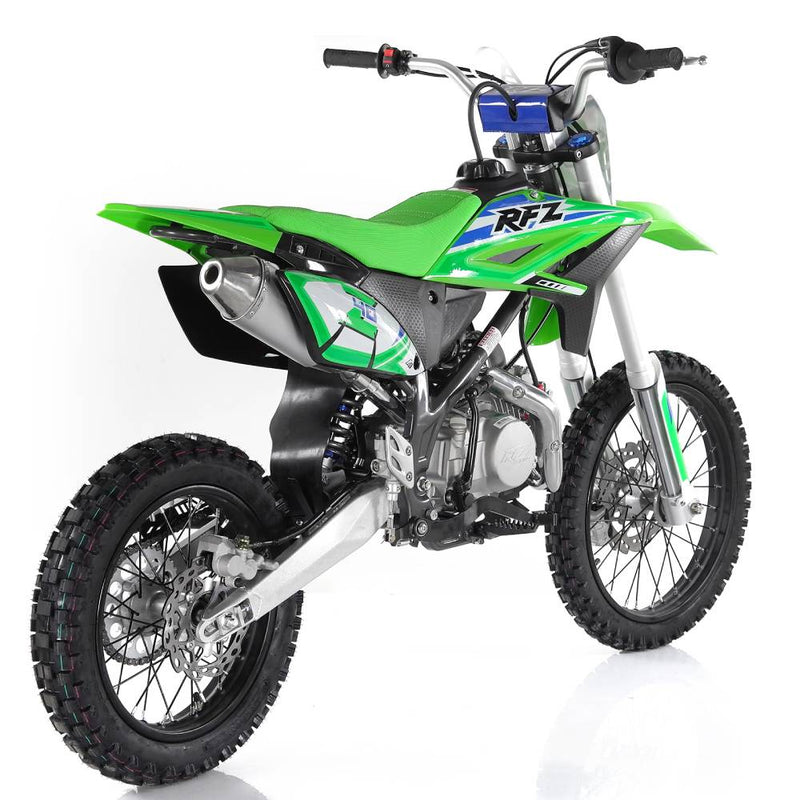

Apollo Motors Z40 140cc Pit Bike | Manual Clutch | CARB Approved
$1125
A real 4-stroke quad, sized and governed for young riders
The Apollo Z40 140cc pit bike is a mid-size manual dirt bike made for teens and adults who want full control over shifting and power. It uses a 4-speed manual clutch gearbox, letting the rider move through gears for better control on trails and tracks.
A strong double-beam steel frame, long travel front forks, and adjustable rear mono shock help the bike handle bumps and uneven ground. With 17-inch front and 14-inch rear wheels, this bike has higher ground clearance for off-road riding.
This model is CARB approved for California buyers, meeting California emission rules.
Key Features
-
140cc air-cooled 4-stroke engine
-
4-speed manual clutch (N-1-2-3-4)
-
Kick start ignition
-
Front and rear hydraulic disc brakes
-
Telescopic front forks
-
Adjustable rear mono shock
-
Double-beam heavy-duty steel frame
-
Chain final drive
-
CARB approved for California
Technical Specifications
| Specification | Details |
|---|---|
| Model | Apollo Z40 140cc Pit Bike |
| Engine Type | Single cylinder, 4-stroke, air-cooled |
| Displacement | 140cc |
| Bore × Stroke | 56 × 57 mm |
| Compression Ratio | 9.8:1 |
| Max Power | 11 HP @ 8000 rpm |
| Max Torque | 10.2 Nm @ 7500 rpm |
| Transmission | Manual Clutch, 4-Speed |
| Gearing | N-1-2-3-4 |
| Final Drive | Chain |
| Starting System | Kick Start |
| Ignition | CDI |
| Fuel Capacity | 1.03 gal |
| Engine Oil Capacity | 0.24 gal |
| Max Speed | Approx. 52 mph |
| Max Load | Approx. 220 lbs |
Suspension, Wheels & Brakes
| Component | Specification |
|---|---|
| Front Suspension | Telescopic Forks, 30.3 in, Non-Adjustable |
| Rear Suspension | Swing Arm with Mono Shock, 13.8 in, Adjustable |
| Front Brake | Hydraulic Disc |
| Rear Brake | Hydraulic Disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
| Frame | Double Beam Heavy-Duty Steel |
| Ground Clearance | 13.5 inches |
Dimensions & Weight
| Measurement | Value |
|---|---|
| Wheelbase | 49.2 inches |
| Seat Height | 32.5 inches |
| Net Weight | 168 lbs |
| Gross Weight | 196 lbs |
| Bike Size (L×W×H) | 70 × 30.7 × 46 inches |
| Shipping Size | 57.5 × 15 × 29.5 inches |
Riding Control
-
Hand clutch for gear control
-
Foot gear shifter
-
Hand front brake lever
-
Foot rear brake pedal
Assembly & Pickup
-
Brand new, 70% assembled inside a metal crate
-
Certified technician required for full assembly and prep
-
Fully assembled units are pickup only from Dallas, Texas store
Warranty Information
-
30-day replacement parts warranty only
-
Labor, mechanic work, and returns not covered
Electric Start
Push-button starting — no frustrating pull cords. A backup kick-start is there if you need it.
Automatic + Reverse
Fully automatic transmission with true reverse (D-N-R) makes it effortless to ride and easy to back out of tight spots.
Digital Gear Indicator
A clear digital readout shows the selected drive mode at a glance — confidence for new riders.
Parent Remote Shut-Off
Wireless remote lets a parent cut the engine instantly from a distance. Peace of mind, built in.
Adjustable Speed Limiter
Start slow, then open it up as your rider gains skill. You stay in control of top speed.
Tether Kill Switch
An automatic safety cutoff that stops the ATV if the rider separates from the seat.
Three layers of parent control
This isn't a toy — it's a real 4-stroke ATV engineered with youth safety first. You decide how fast, and you can stop it instantly.
Wireless Remote Shut-Off
Stop the engine from up to 30 ft away.
Adjustable Speed Limiter
Cap top speed while they're learning.
Tether Kill Switch
Auto-stops if the rider leaves the seat.
Hydraulic Disc Rear Brake
Strong, reliable stopping power.
Rated 4.8 / 5 by 203 buyers
Bought this for my 9-year-old and he's obsessed. The adjustable speed limiter let me start him slow then open it up as he got confident. Arrived crated and well-packed.
Was nervous ordering a $1,200 ATV online but their phone support walked me through everything. Shipping was free and showed up in 5 days. Runs great.
Questions, answered
Yes — it's built youth-first. It includes an adjustable speed limiter so you control top speed, a wireless remote shut-off so a parent can stop the ATV instantly, and a tether kill switch. We always recommend a helmet, supervision, and gradual speed increases as your rider gains confidence.
The ATV ships about 70% assembled in a protective metal crate. Final assembly (handlebars, wheels, mirrors, fluids) takes most people under an hour. Prefer it ready to ride? Add the Pro Assembly + Safety Check option and a certified technician fully assembles, tunes, and road-tests it before it ships.
Shipping, assembly & delivery
Free freight shipping
Ships free to the lower 48 in a protective metal crate. Freight delivery includes lift-gate service, residential delivery, shipping insurance, and a scheduled appointment.
~70% pre-assembled
Final assembly and prep take most people under an hour. A certified technician is required for final assembly, prep, basic care & maintenance. Prefer it ready to ride? Add Pro Assembly.
Warranty & returns
Free 30-day replacement-parts warranty, with 6- and 12-month extensions available. Labor, mechanic services, and returns are handled through our US-based support team.
