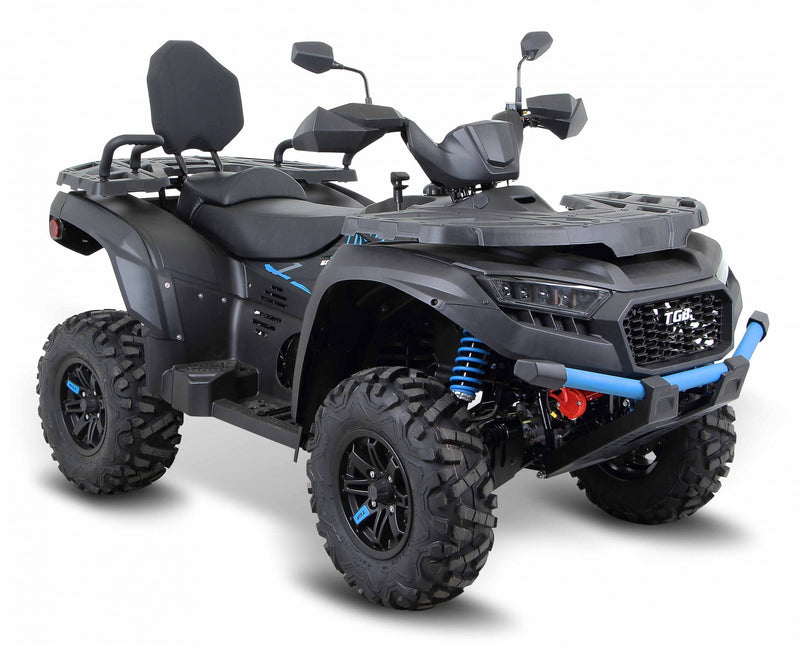

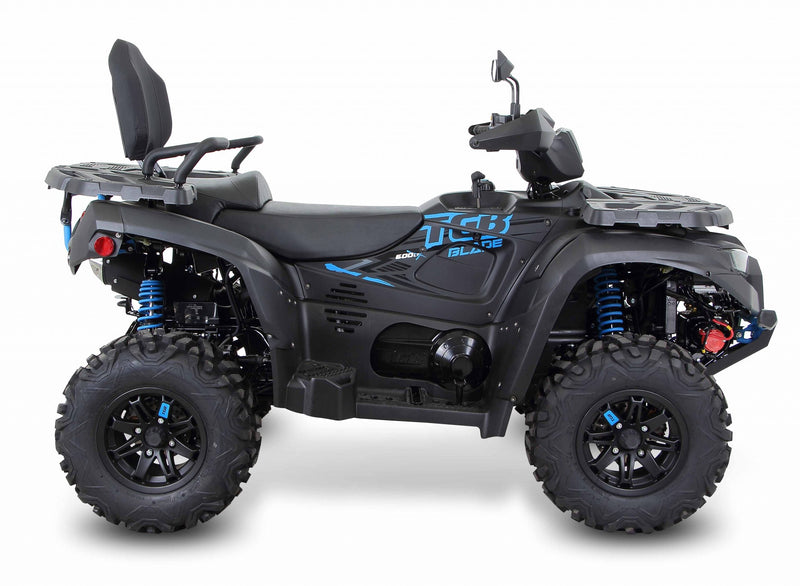

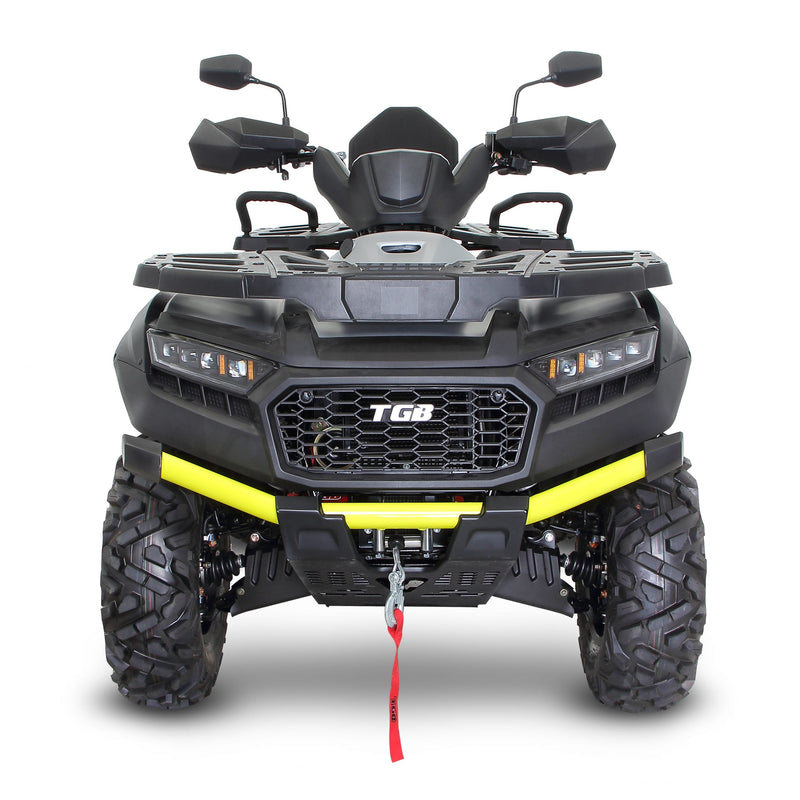

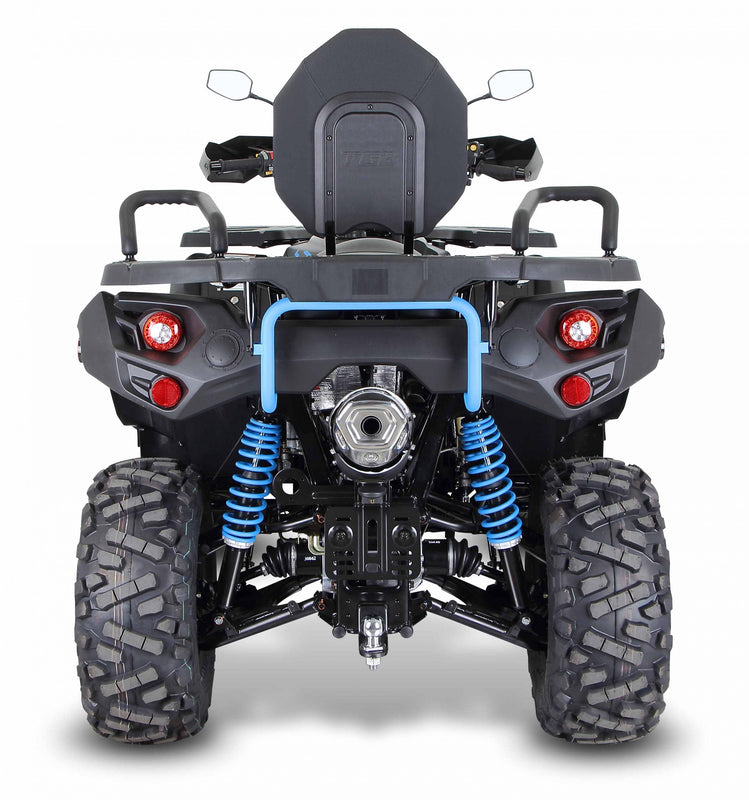

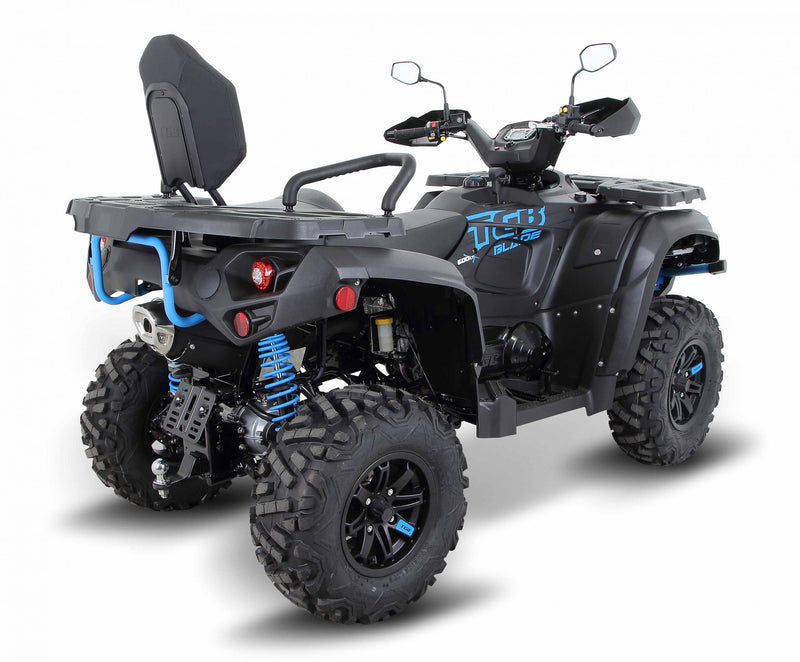

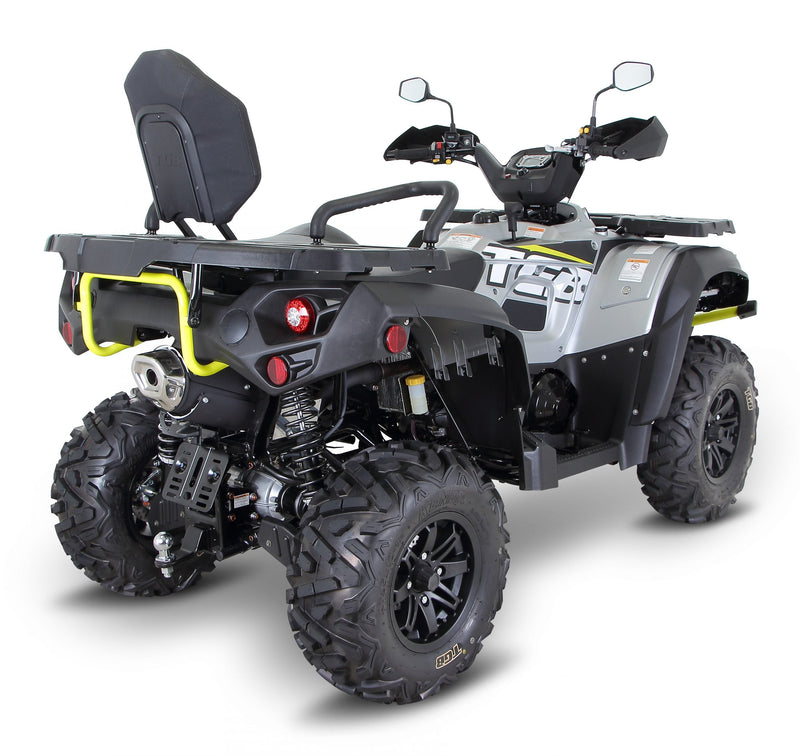

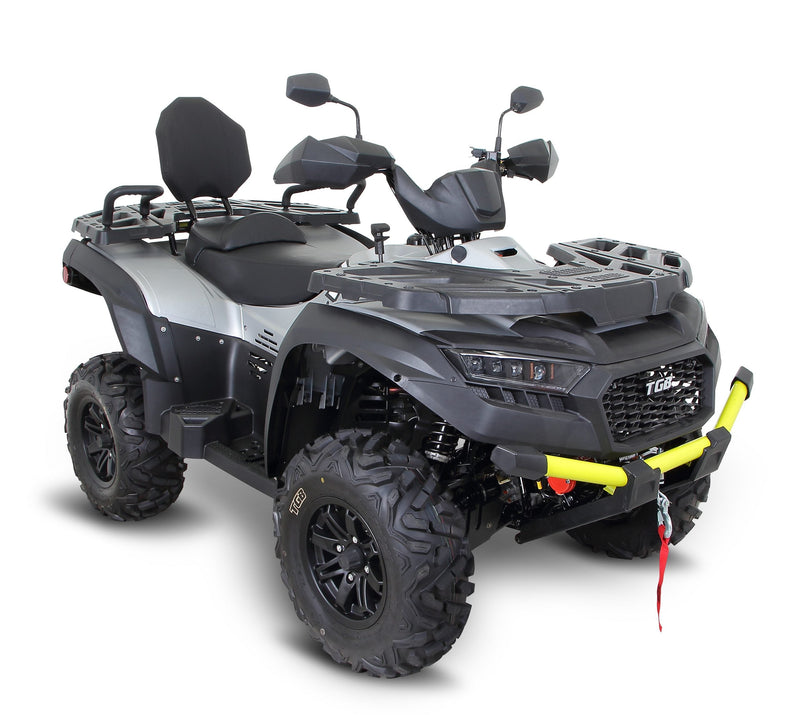

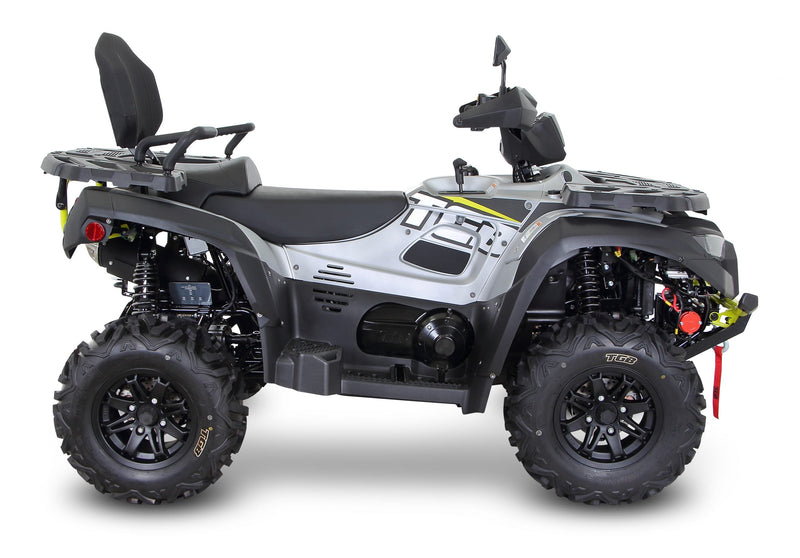

The BLADE 600 LTX EPS ATV is built specifically for two riders, extending not only the seat but the entire chassis to deliver a stable, balanced, and comfortable companion riding experience. Powered by a 561cc single-cylinder SOHC engine, this ATV combines strong torque delivery with smooth electronic power steering for long trail rides, utility work, and recreational touring.
With LED-matrix headlights, full LED lighting, an extended wheelbase, and a 4×4 shaft-drive system, the Blade 600 LTX EPS offers confident control across mixed terrain. The removable front radiator grille allows quick cleaning, making this model practical for both work and trail use.
Key Features
-
Two-passenger extended seat and chassis
-
Electronic Power Steering (EPS)
-
4×4 shaft-drive system
-
Full LED lighting with LED-matrix headlights
-
CVT automatic transmission
-
Engine braking system with override button
-
Dual A-arm suspension front and rear
-
Digital instrument cluster
Technical Specifications
| Specification | Details |
|---|---|
| Model | TGB Blade 600 LTX EPS |
| Engine Type | 561cc, Single Cylinder, SOHC |
| Ignition | ECU |
| Starter | Electric |
| Bore × Stroke | 95 × 79.2 mm |
| Compression Ratio | 10.2:1 |
| Fuel System | 42 mm Throttle Body / Programmed Fuel Injection |
| Max Power | 44.8 HP @ 6,500 rpm |
| Max Torque | 46.5 Nm @ 5,500 rpm |
| Drive System | 4 × 4 Shaft Drive |
| Transmission | V-Belt CVT Automatic |
| Gear Selection | L / H / N / R / P |
| Engine Braking System | Standard |
| Override Button | Standard |
Chassis, Suspension & Brakes
| Component | Specification |
|---|---|
| Front Suspension | Dual A-Arm |
| Rear Suspension | Dual A-Arm with Anti-Roll Bar |
| Front Brake | Hydraulic Disc |
| Rear Brake | Hydraulic Disc with Hydraulic Foot Brake |
| Parking Brake | Transmission Park / Lockable Hand Lever |
| Front Tires | AT 25 × 8-12, 6-Ply |
| Rear Tires | AT 25 × 10-12, 6-Ply |
Dimensions & Capacity
| Dimension | Measurement |
|---|---|
| Wheelbase | 1450 mm |
| Length | 2360 mm |
| Width | 1235 mm |
| Height | 1280 mm |
| Fuel Capacity | 18 Liters |
| Electrical Outlet | 2 × DC 12V 10A (120W) |
Instrumentation
Digital instrument panel includes:
-
Speedometer
-
Odometer
-
Trip meter
-
RPM gauge
-
Gear position indicator
-
Fuel gauge
-
High-temperature warning
-
Low-battery warning
-
High beam indicator
-
EFI system indicator
-
Differential indicator
-
2WD / 4WD indicator
-
EPS indicator
Color Options
-
Matte Black
-
Matte Silver
-
Camo (if available – $250 extra)
Assembly & Warranty Information
-
Brand new, 70% assembled inside a metal crate
-
Certified technician required for assembly, prep, and maintenance
-
30-day replacement parts warranty only
-
Labor, mechanic services, and returns not covered
