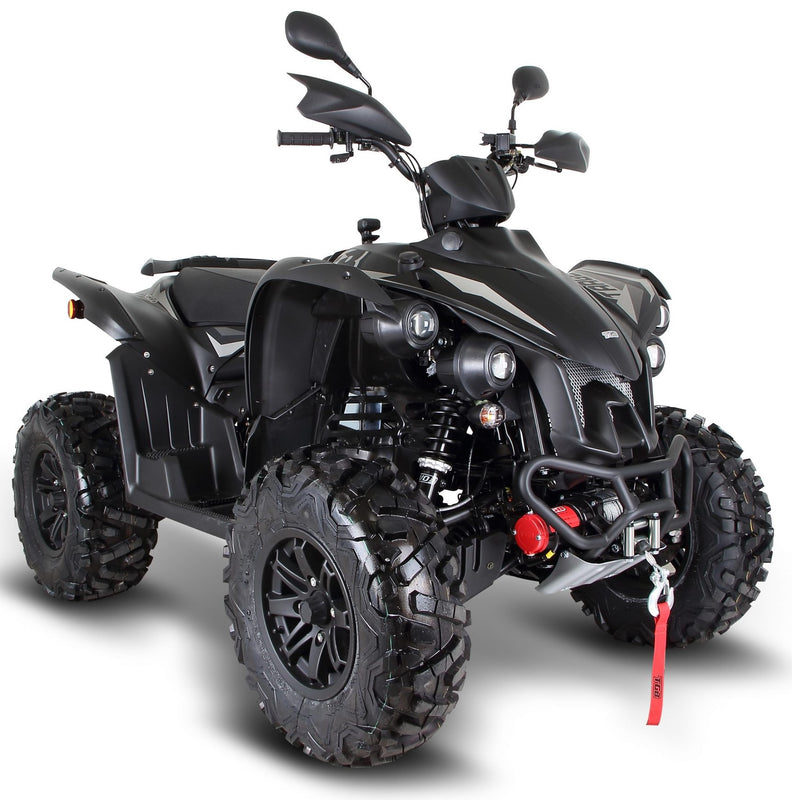

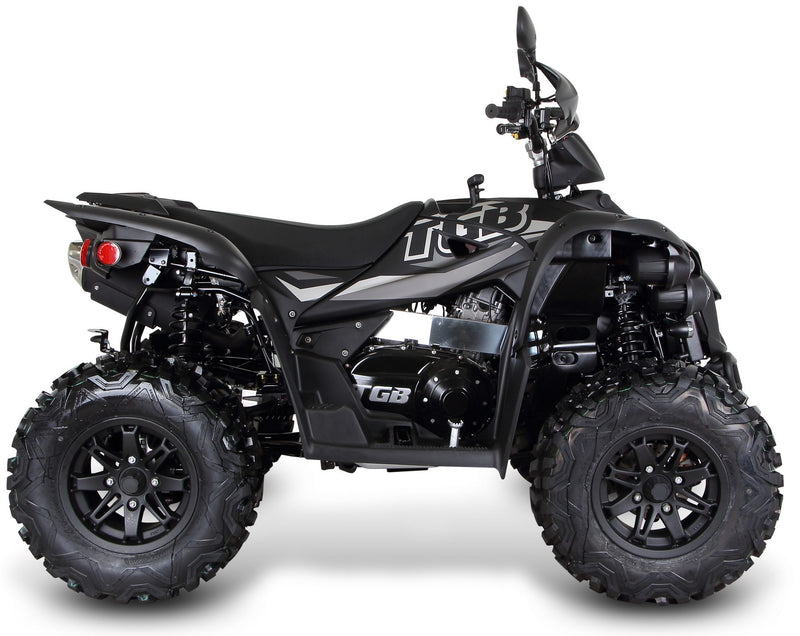

The TGB Target 600 ATV in Black delivers a sharp, aggressive look combined with proven 600cc performance. Built for riders who want a sport-focused 4×4 ATV with simple operation and dependable engineering, the Target 600 balances power, stability, and control across all terrains.
Its 561cc fuel-injected single-cylinder engine produces strong torque for trail riding, utility use, and touring. The shaft-driven 4×4 system with differential lock ensures traction on dirt, mud, gravel, and uneven ground. A specially tuned chassis, paired with dual A-arm suspension and rear anti-roll bar, delivers confident handling and reduced body roll during aggressive riding.
The CVT automatic transmission keeps riding smooth and easy, while the engine braking system and override button provide extra control on descents. A full digital instrument panel keeps all critical ride data visible, making this ATV equally suited for recreation and light utility tasks.
Key Features
-
561cc single-cylinder SOHC engine
-
Shaft-drive 4×4 system with differential lock
-
CVT automatic transmission (L / H / N / R / P)
-
Engine braking system with override button
-
Dual A-arm suspension with rear anti-roll bar
-
Hydraulic disc brakes front and rear
-
Digital multifunction instrument cluster
-
Black factory color finish
Technical Specifications
| Specification | Details |
|---|---|
| Model | TGB Target 600 |
| Engine Type | 561cc Single Cylinder, SOHC |
| Ignition | ECU |
| Starter | Electric |
| Bore × Stroke | Ø 95 × 79.2 mm |
| Compression Ratio | 10.2 : 1 |
| Fuel System | 42 mm Throttle Body, Programmed Fuel Injection |
| Max Power | 44.8 HP @ 6500 RPM |
| Max Torque | 46.5 Nm @ 5500 RPM |
| Transmission | CVT Automatic (V-Belt) |
| Gear Selection | L / H / N / R / P |
| Drive System | Shaft Drive 4×4 |
| Engine Braking | Standard |
| Override Button | Standard |
| Front Suspension | Dual A-Arm |
| Rear Suspension | Dual A-Arm with Anti-Roll Bar |
| Front / Rear Brakes | Hydraulic Disc with Piston Calipers |
| Parking Brake | Transmission Park + Lockable Hand Lever |
| Front Tires | AT 25×8-12, 6-Ply |
| Rear Tires | AT 25×10-12, 6-Ply |
| Wheelbase | 1290 mm |
| Dimensions (L×W×H) | 1950 × 1240 × 1280 mm |
| Fuel Capacity | 18 Liters |
| Electrical Outlets | Dual DC 12V / 10A / 120W |
Instrumentation & Indicators
Digital display includes:
-
Speedometer
-
Odometer
-
Trip meter
-
RPM gauge
-
Transmission position indicator
-
Fuel gauge
-
High-temperature warning
-
Low-battery warning
-
High-beam indicator
-
EFI system check
-
Differential lock indicator
-
2WD / 4WD indicator
Color Options
-
Black (standard)
-
Camo colors available for $250 extra (if available)
Assembly, Warranty & Pickup
-
Brand new, 70% assembled in a metal crate
-
Certified technician required for final assembly, prep, and maintenance
-
30-day replacement parts warranty only
-
Labor, mechanic services, and returns not covered
-
Assembled units available for pickup only from retail store in Dallas, Texas
