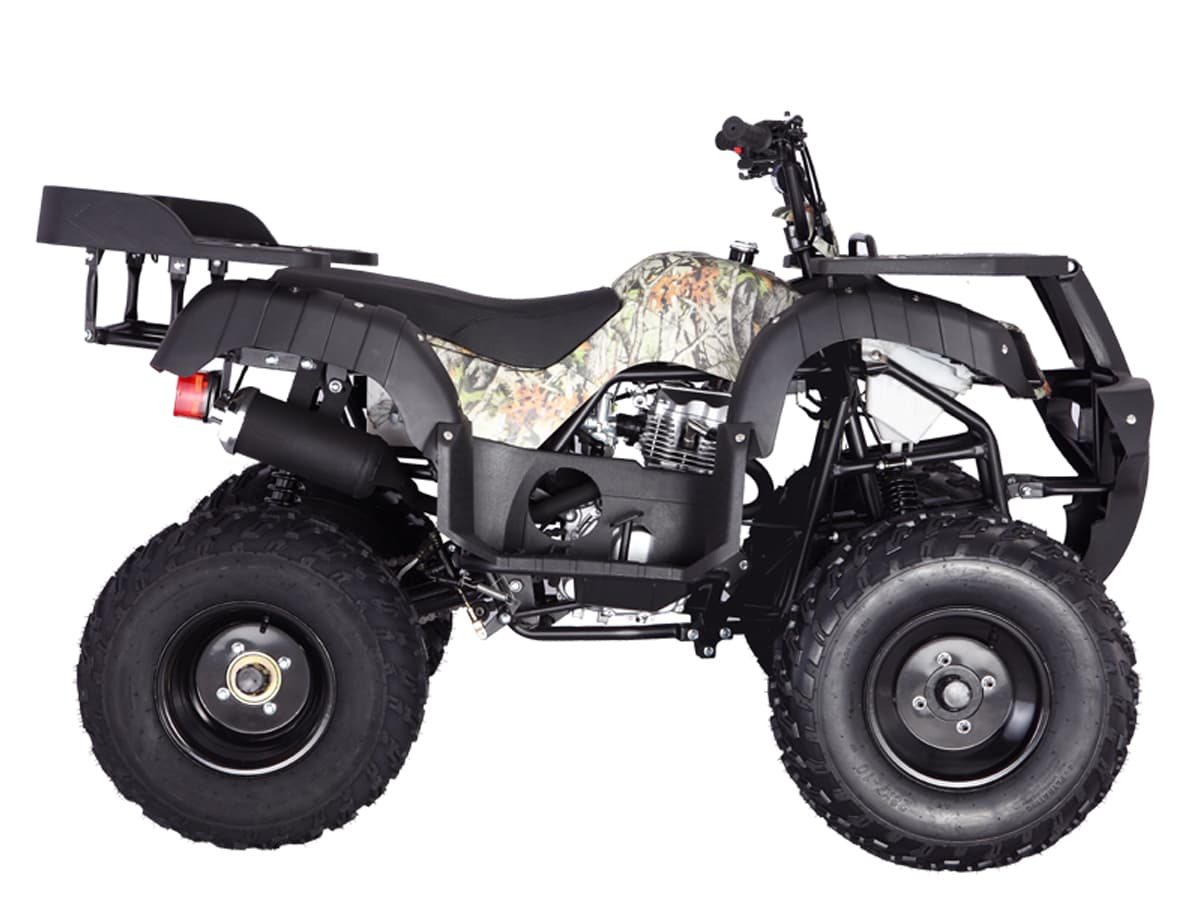

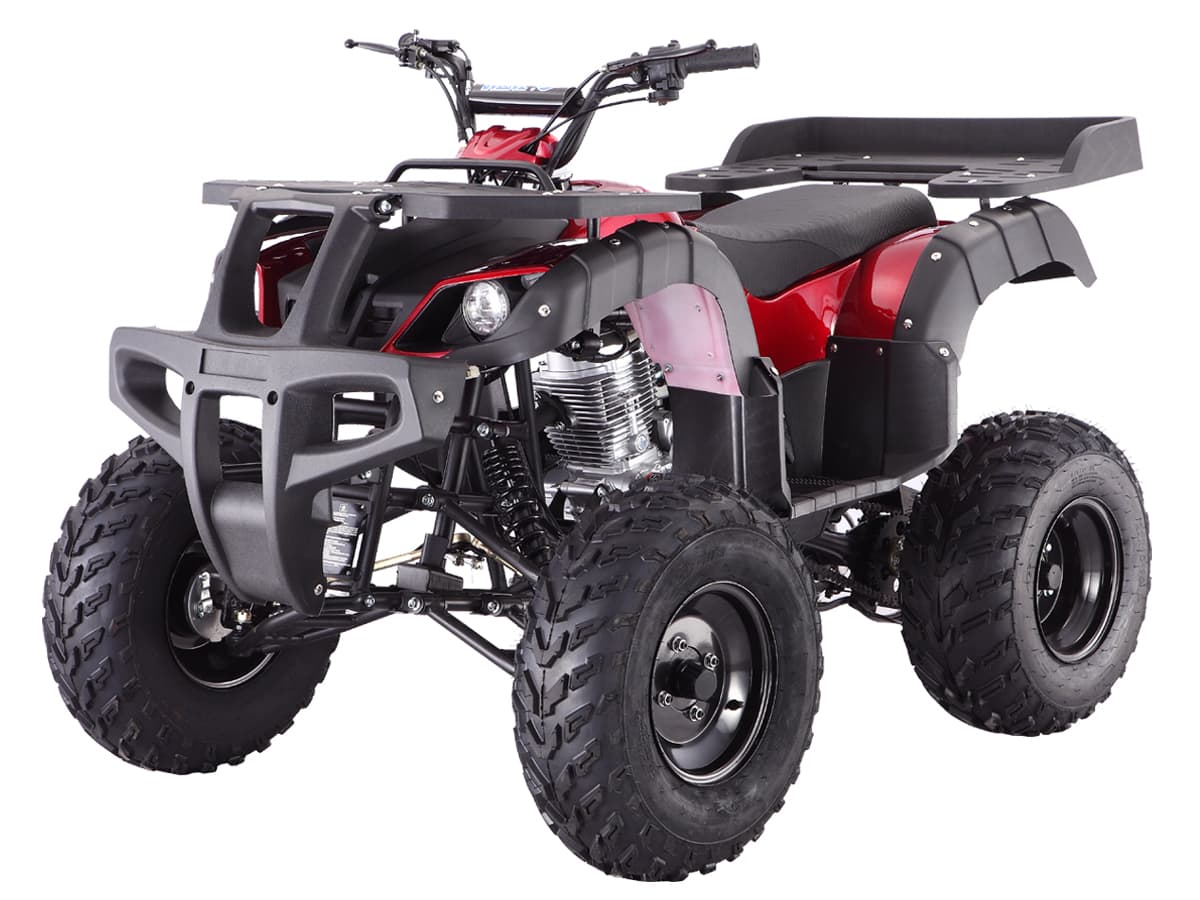

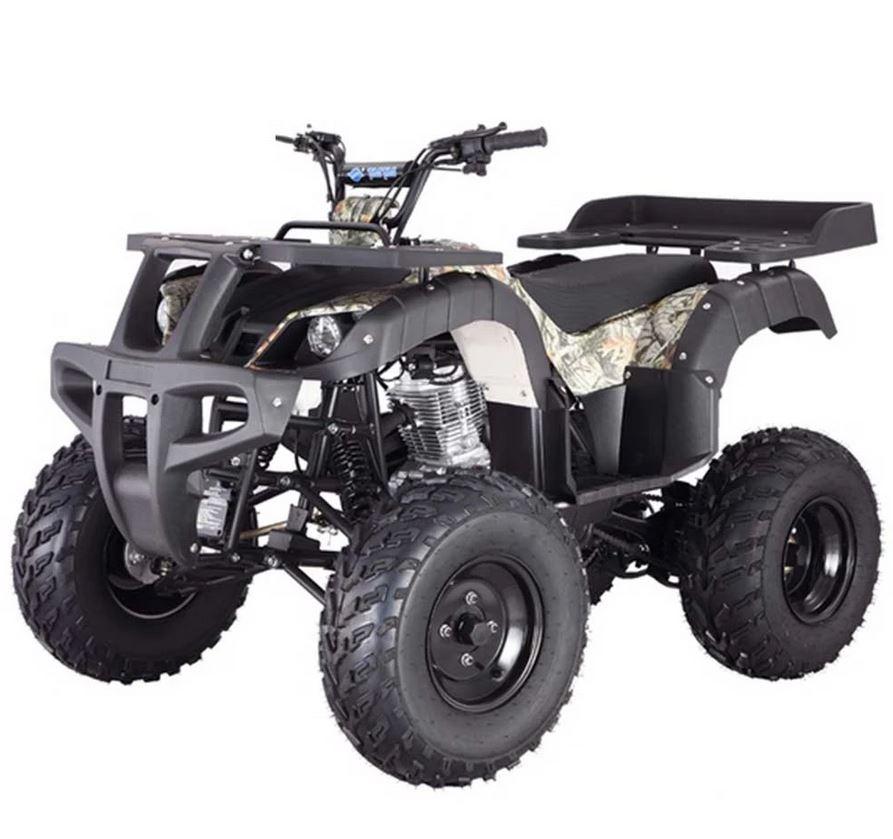

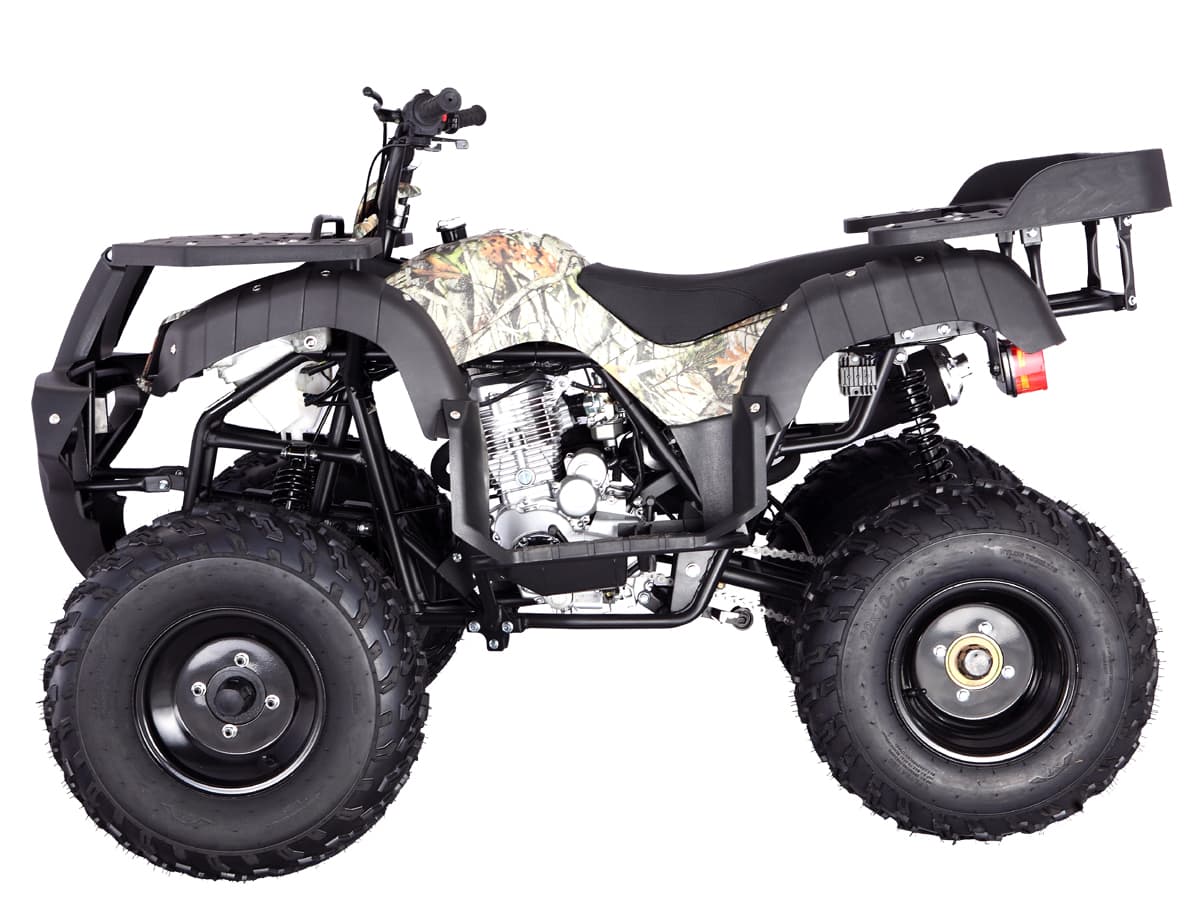

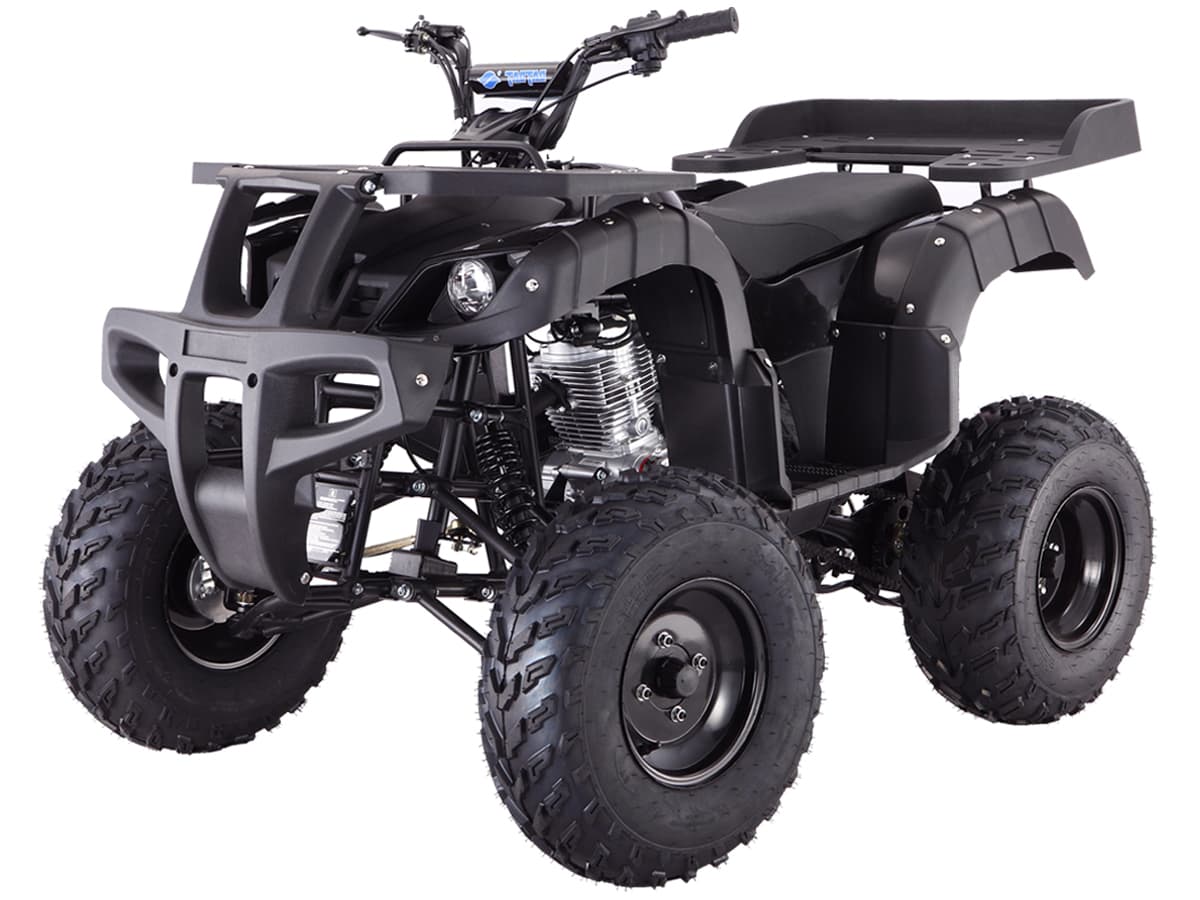

The TaoTao RHINO-250 196cc Full-Size ATV is an adult-size quad built for riders who want manual control and larger tires for off-road use. It runs on a 196cc air-cooled 4-stroke single-cylinder engine paired with a manual transmission and foot-shifted gears, delivering direct throttle and gear control.
Starting is handled by an electric start system. Power is delivered through a chain drive, with a gear pattern of 4-3-2-1-N-R. Maximum torque reaches 8.5 Nm at 5000–5500 RPM, suitable for trail riding and utility use.
This ATV rides on 23×7-10 front tires and 22×10-10 rear tires, providing traction and stability. Braking includes a front hand-operated drum brake and a rear foot-operated hydraulic disc brake. Suspension travel measures 15.7 inches in front and 13.4 inches in the rear to handle uneven terrain.
Additional safety features include a speed limiter and an engine kill switch. The chassis supports a maximum load of 198 lbs. This model is designed for off-road use only.
Features & Specifications
| Item | Details |
|---|---|
| Model | TaoTao RHINO-250 |
| Engine Type | 196cc (197cc class) air-cooled, 4-stroke, single-cylinder |
| Transmission | Manual |
| Gear Pattern | 4-3-2-1-N-R |
| Shift Type | Foot shift |
| Drive System | Chain drive |
| Start System | Electric start |
| Ignition | DI |
| Maximum Torque | 8.5 Nm @ 5000–5500 RPM |
| Fuel Tank Capacity | 1.1 gallons |
| Battery | 12V / 9Ah |
| Front Brake | Drum (hand operated) |
| Rear Brake | Hydraulic disc (foot operated) |
| Front Tire | 23 × 7-10 |
| Rear Tire | 22 × 10-10 |
| Front Suspension Travel | 15.7 inches |
| Rear Suspension Travel | 13.4 inches |
| Speed Limiter | Yes |
| Engine Kill Switch | Yes |
| Wheelbase | 43.9 inches |
| Seat Height | 31.89 inches |
| Ground Clearance | 5.32 inches |
| Overall Dimensions (L×W×H) | 69.3 × 42.1 × 43.3 inches |
| Gross Weight | 363.76 lbs |
| Net Weight | 308.65 lbs |
| Maximum Load | 198 lbs |
| Carton Size | 55.9 × 33.0 × 34.3 inches |
| Use Type | Off-road only |
Why Choose the TaoTao RHINO-250 ATV
-
Manual transmission offers direct riding control
-
196cc engine suits full-size off-road use
-
Large 23″/22″ tire setup improves traction
-
Rear hydraulic disc brake adds stopping control
-
Speed limiter and kill switch support safer riding
-
Adult-size frame for trail and utility riding
Assembly & Delivery
The ATV ships brand new and 70% assembled inside a metal crate.
Final assembly, preparation, basic maintenance, and all technical inspection must be completed by a certified technician.
Warranty:
-
30-day replacement parts only
-
Labor, mechanic costs, and returns are not covered
Freight shipping includes:
-
Lift gate service
-
Residential delivery
-
Shipping insurance
-
Delivery appointment scheduling
A working phone number is required for delivery coordination.
