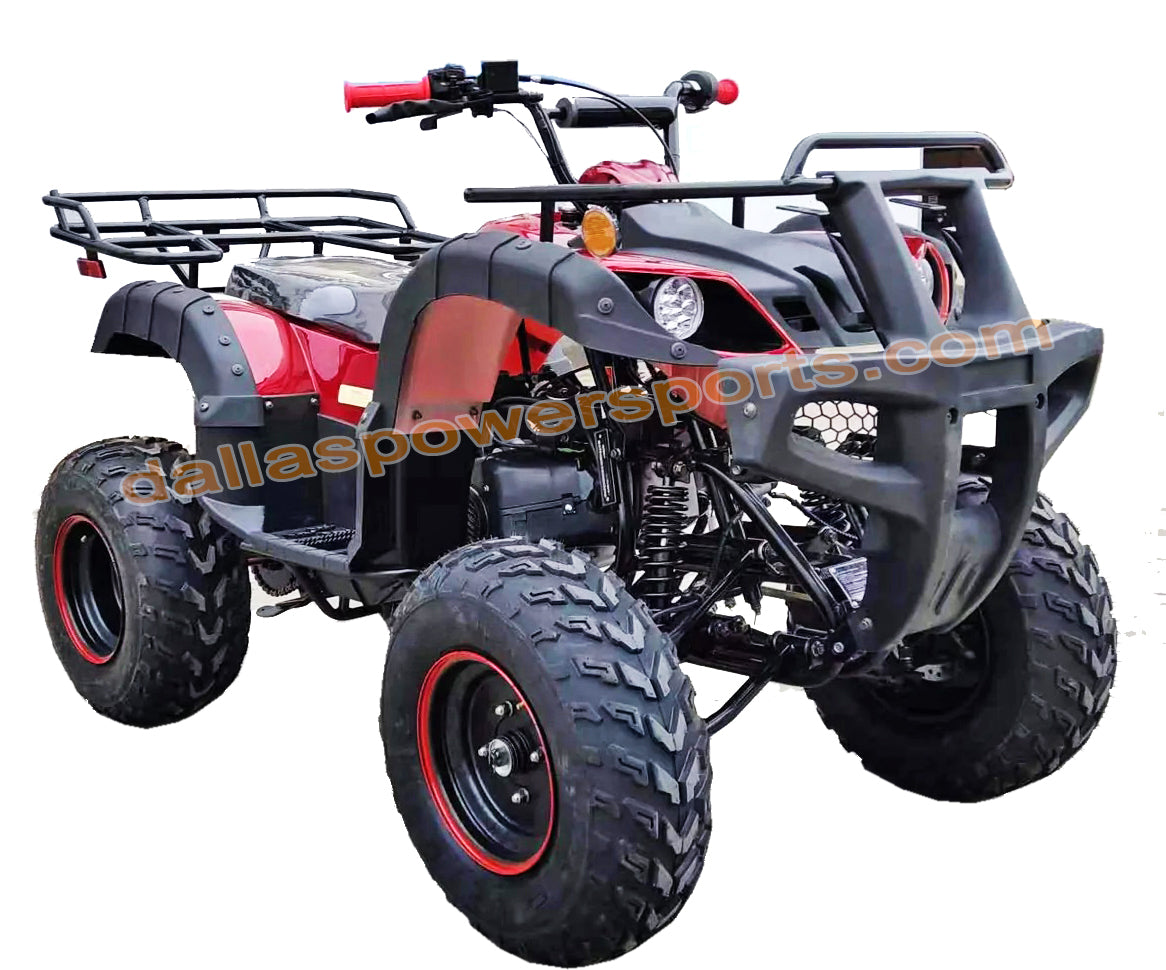

The ATV-56L-200 200cc Full-Size Youth ATV is a powerful, full-frame quad built for older youth and adult riders who want a stable, automatic ATV with real trail capability. Powered by a 200cc single-cylinder, 4-stroke air-cooled engine, this model delivers strong torque and dependable performance for recreational off-road use.
With front and rear hydraulic disc brakes, a wide stance, and large 23”/22” steel wheels, the ATV-56L-200 offers solid control on dirt, gravel, and uneven terrain. Its full-size chassis and high load capacity make it suitable for riders who have outgrown smaller youth ATVs but still want manageable handling.
This unit ships 70% assembled in a metal crate and is available in Blue, with additional color options depending on availability.
Key Features
-
Full-size 200cc youth / adult ATV
-
Single-cylinder 4-stroke air-cooled engine
-
Front & rear hydraulic disc brakes
-
Large 23” front / 22” rear tires
-
Steel wheels for durability
-
Automatic operation (no clutch)
-
Wide stance for improved stability
-
Suitable for trail riding and property use
Specifications & Technical Details
| Item | Details |
|---|---|
| Model | ATV-56L-200 |
| Engine Model | 1P63QML |
| Engine Type | 1-Cylinder, 4-Stroke, Air-Cooled |
| Displacement | 200 cc |
| Ignition | CDI |
| Battery | 12V / 9Ah |
| Max Power | 9.1 kW @ 7500 rpm |
| Max Torque | 10 N·m @ 6000 rpm |
| Front Brake | Hydraulic Disc |
| Rear Brake | Hydraulic Disc |
| Front Tire | 23 × 7-10 |
| Rear Tire | 22 × 10-10 |
| Wheel Hubs | Steel |
| Wheelbase | 1115 mm |
| Ground Clearance | 135 mm |
| Overall Dimensions | 1700 × 1040 × 1100 mm |
| Net Weight | 170 kg |
| Max Load | 150 kg |
| Wheel Pressure (F/R) | 100 / 100 kPa |
| Color | Blue (Black, Red also available) |
Usage & Rider Information
-
Off-road use only
-
Designed for older youth and adult riders
-
Suitable for trails, dirt roads, and recreational riding
-
Full-size ATV platform with strong load capacity
Assembly, Warranty & Delivery
This ATV ships brand new and 70% assembled inside a metal crate.
Final assembly, preparation, and maintenance must be completed by a certified technician.
Warranty
-
30-day replacement parts only
-
Labor, mechanic services, and returns are not covered
Delivery Includes
-
Lift gate service
-
Residential delivery
-
Shipping insurance
-
Scheduled delivery appointment
