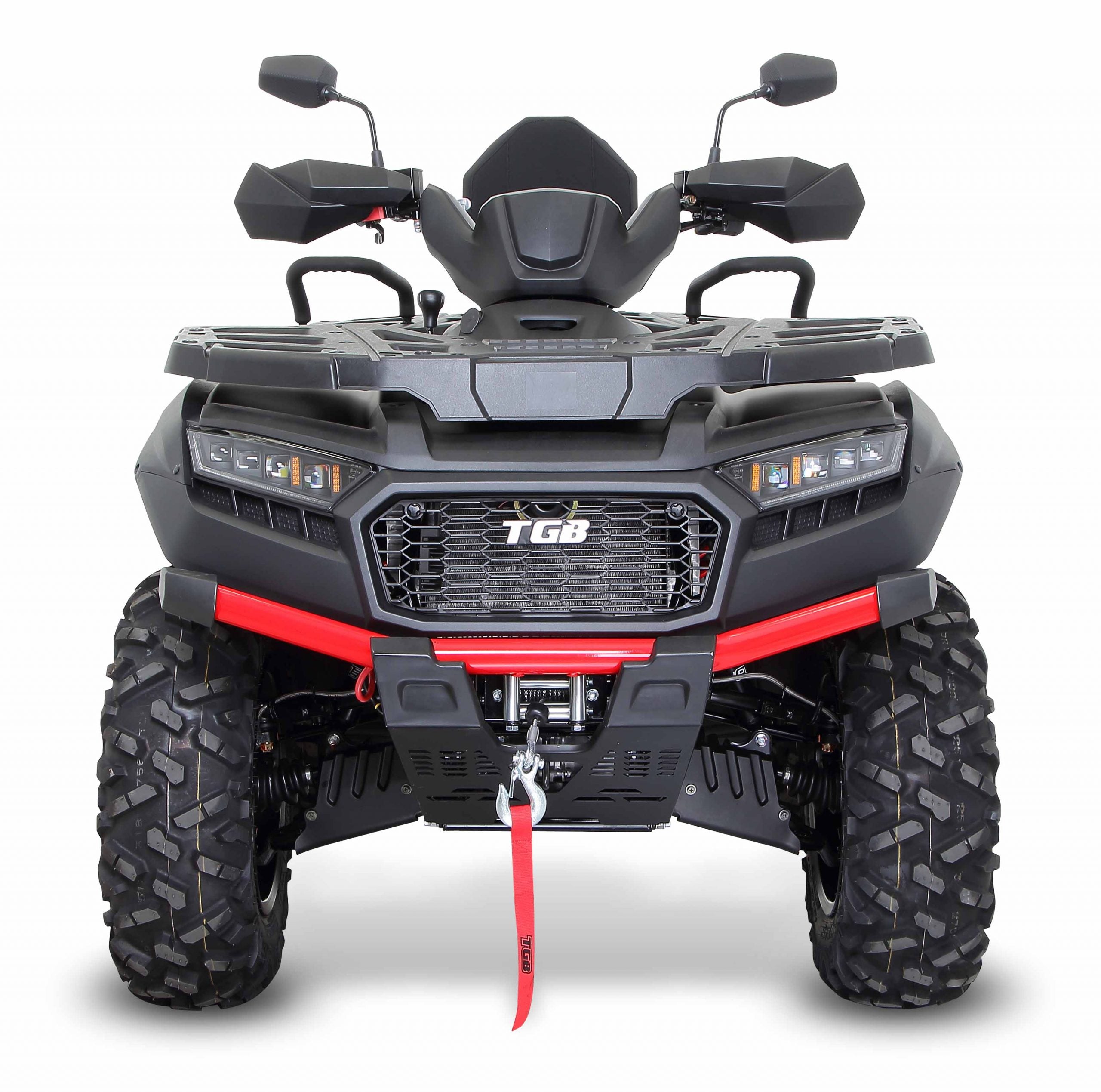

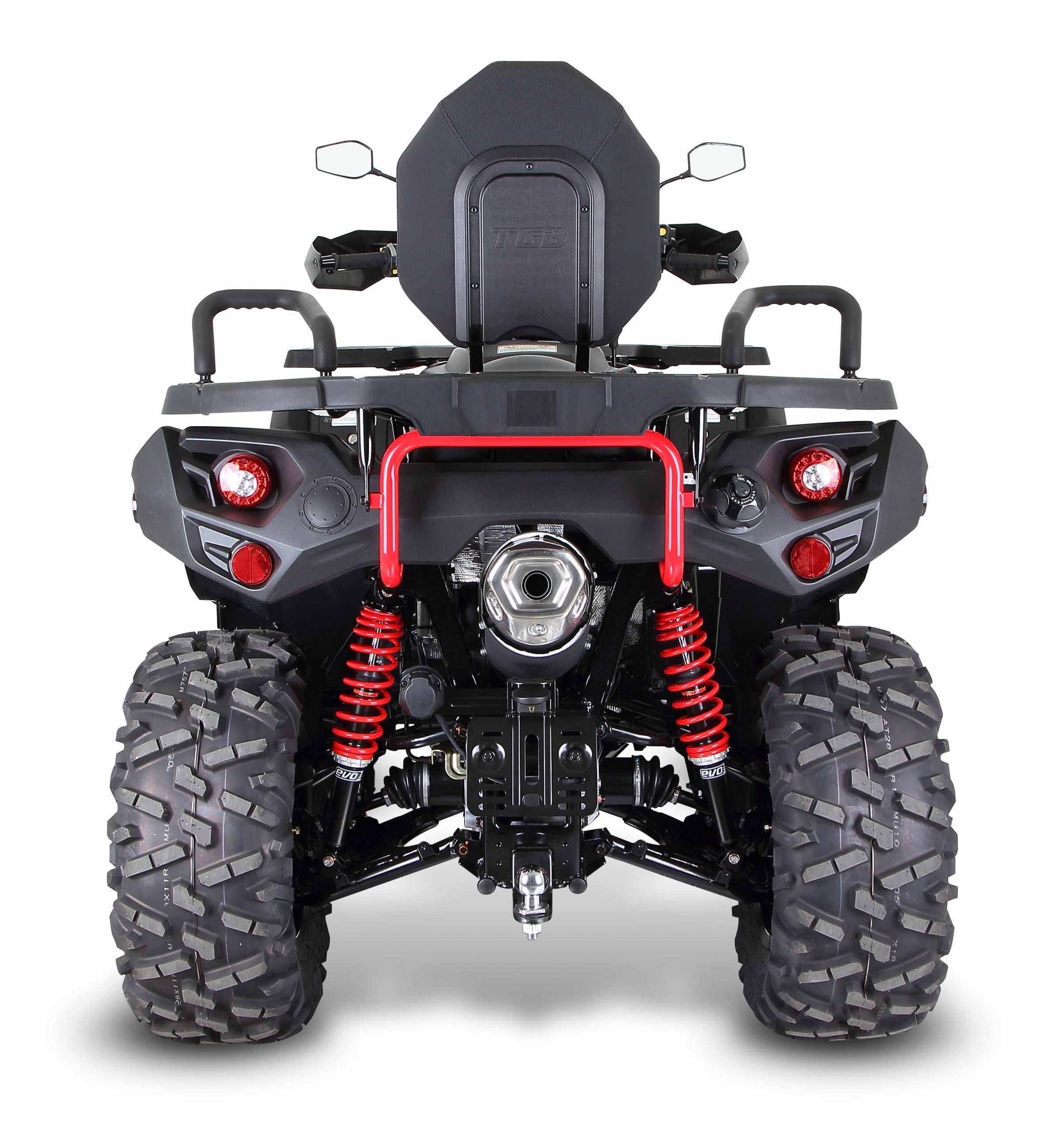

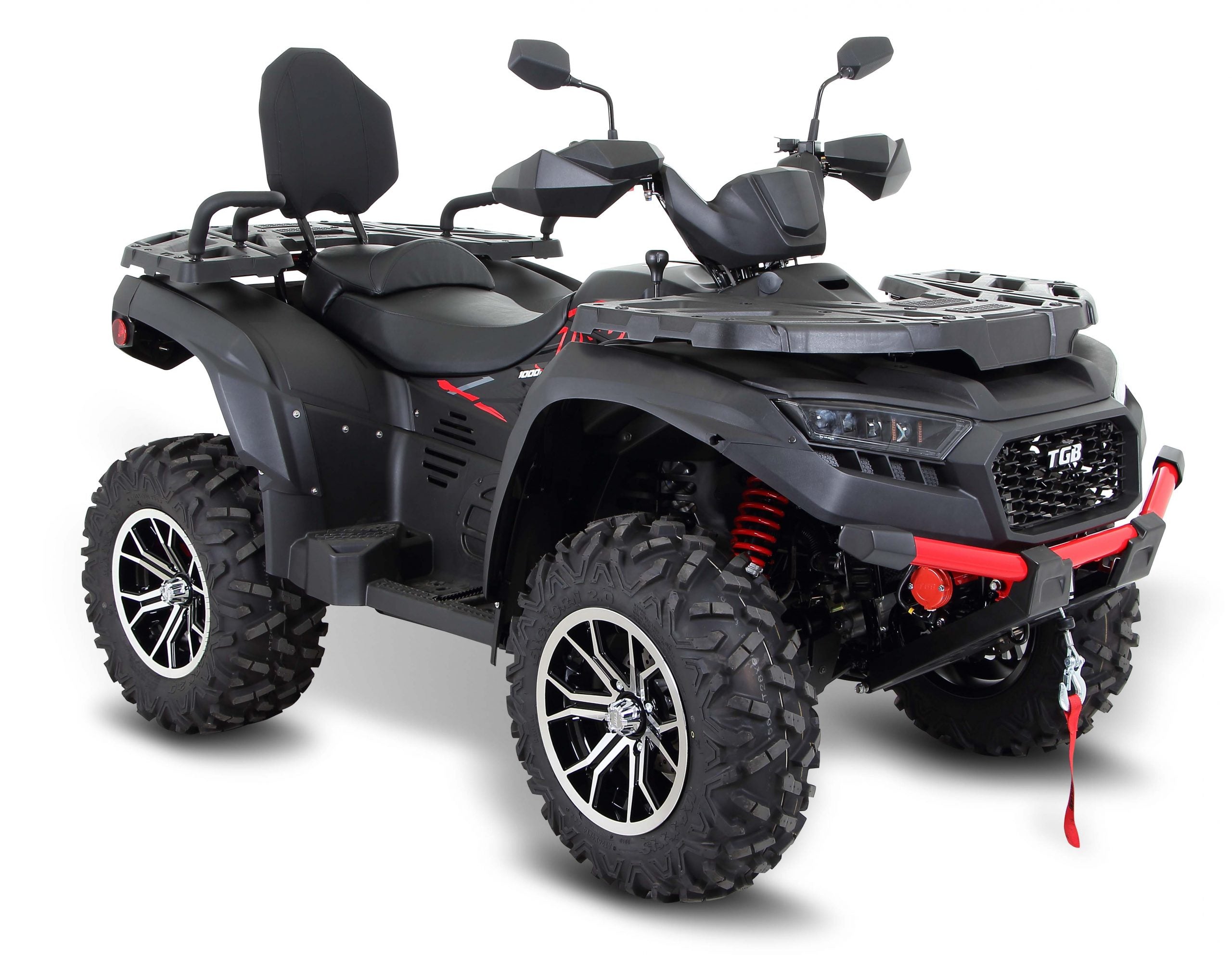

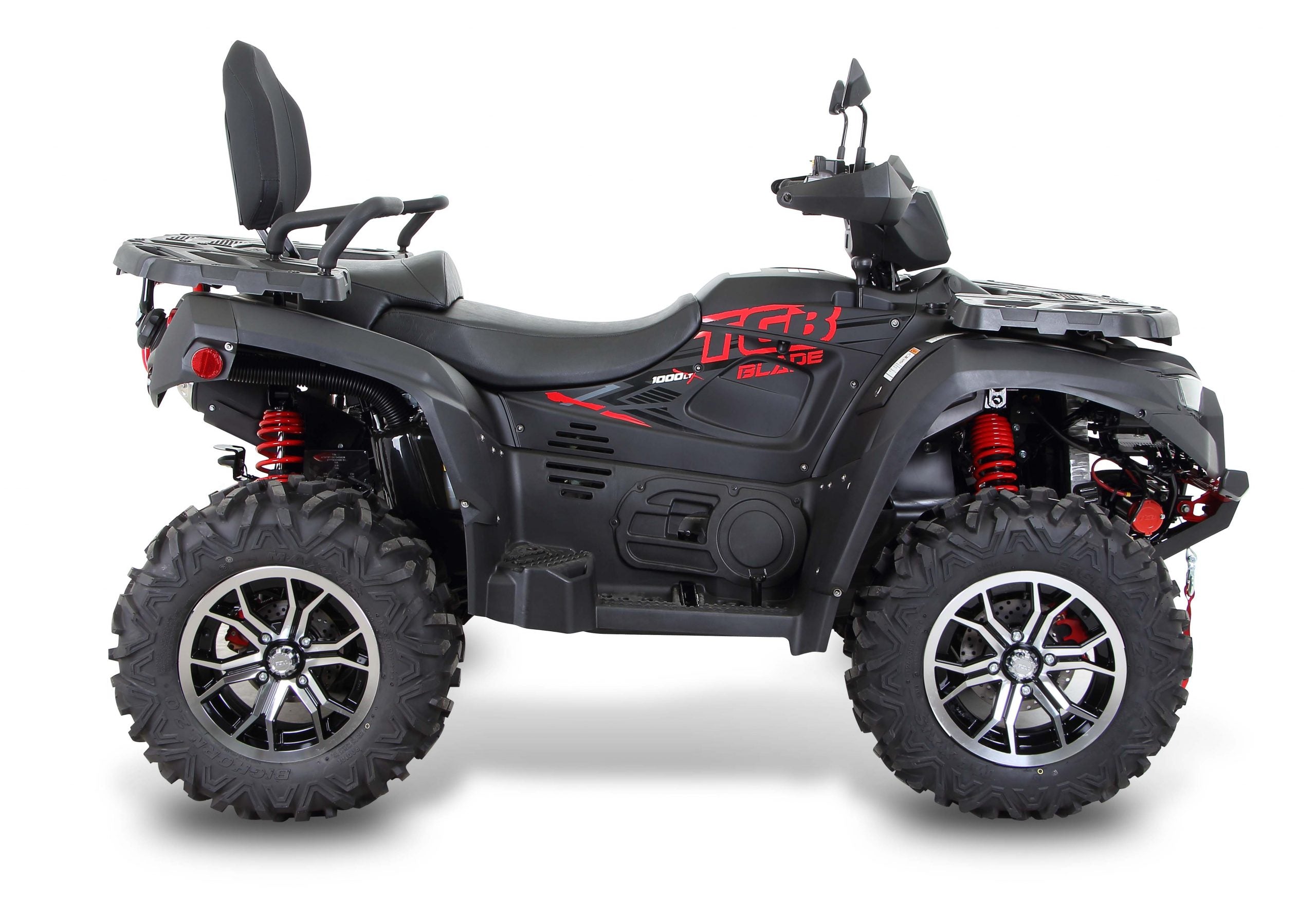

The TGB Blade 1000 LTX-EPS ATV in Matte Black is a full-size, high-performance 4×4 utility ATV engineered for demanding off-road riders, heavy utility work, and long trail rides. This variant features a clean matte black finish with factory decals, delivering a rugged and aggressive look without sacrificing capability.
Powered by a 997cc V-Twin SOHC engine, the Blade 1000 uses programmed fuel injection and a 50 mm throttle body to produce 83 horsepower with strong mid-range torque. The CVT automatic transmission with L / H / N / R / P gearing ensures smooth power delivery and dependable control across varying terrain.
The built-in Electronic Power Steering (EPS) reduces steering effort while maintaining precision at both low and high speeds. A shaft-driven 4×4 drivetrain, engine braking system, and override button provide confident traction management in mud, snow, rocks, and steep terrain.
With dual A-arm suspension front and rear, an integrated anti-roll bar, and 26-inch 6-ply all-terrain tires, this ATV is designed for stability, load handling, and rider comfort during extended use.
Key Features
-
997cc V-Twin SOHC fuel-injected engine
-
Electronic Power Steering (EPS)
-
Shaft-driven 4×4 drivetrain
-
CVT automatic transmission (L / H / N / R / P)
-
Engine braking system with override button
-
Dual A-arm suspension with rear anti-roll bar
-
26″ 6-ply all-terrain tires
-
Heavy-duty hydraulic disc braking system
-
Digital multifunction instrument cluster
Technical Specifications
| Specification | Details |
|---|---|
| Model | TGB Blade 1000 LTX-EPS |
| Engine Type | 997cc V-Twin, SOHC |
| Ignition | ECU |
| Starter | Electric |
| Bore × Stroke | Ø 92 × 75 mm |
| Compression Ratio | 10.2 : 1 |
| Fuel System | 50 mm Throttle Body, Programmed Fuel Injection |
| Max Power | 83 HP @ 7000 RPM |
| Max Torque | 89.9 Nm @ 5500 RPM |
| Transmission | CVT Automatic (V-Belt) |
| Gear Selection | L / H / N / R / P |
| Drive System | Shaft Drive 4×4 |
| Engine Braking | Standard |
| Override Button | Standard |
| Front Suspension | Dual A-Arm |
| Rear Suspension | Dual A-Arm with Anti-Roll Bar |
| Front / Rear Brakes | Hydraulic Disc with Piston Calipers |
| Parking Brake | Transmission Park + Lockable Hand Lever |
| Front Tires | AT 26×9-14, 6-Ply |
| Rear Tires | AT 26×11-14, 6-Ply |
| Wheelbase | 1460 mm |
| Dimensions (L×W×H) | 2340 × 1255 × 1340 mm |
| Fuel Capacity | 23 Liters |
| Electrical Outlets | Dual DC 12V / 10A / 120W |
Instrumentation & Controls
Digital instrument panel includes:
-
Speedometer
-
Odometer
-
Trip meter
-
RPM gauge
-
Transmission position indicator
-
Fuel gauge
-
High-temperature warning
-
Low-battery indicator
-
High-beam indicator
-
EFI system status
-
Differential indicator
-
2WD / 4WD indicator
-
EPS indicator
Color Options
-
Matte Black (this unit)
-
Matte Black with Red Decal
-
Matte Black with Yellow Decal
-
Mountain Grey with Red Decal
Camo color option available (if in stock) — $250 additional
Assembly, Warranty & Delivery
-
Ships brand new, 70% assembled inside a metal crate
-
Certified technician required for final assembly, prep, and maintenance
-
30-day replacement parts warranty only
-
Labor, mechanic services, and returns not covered
