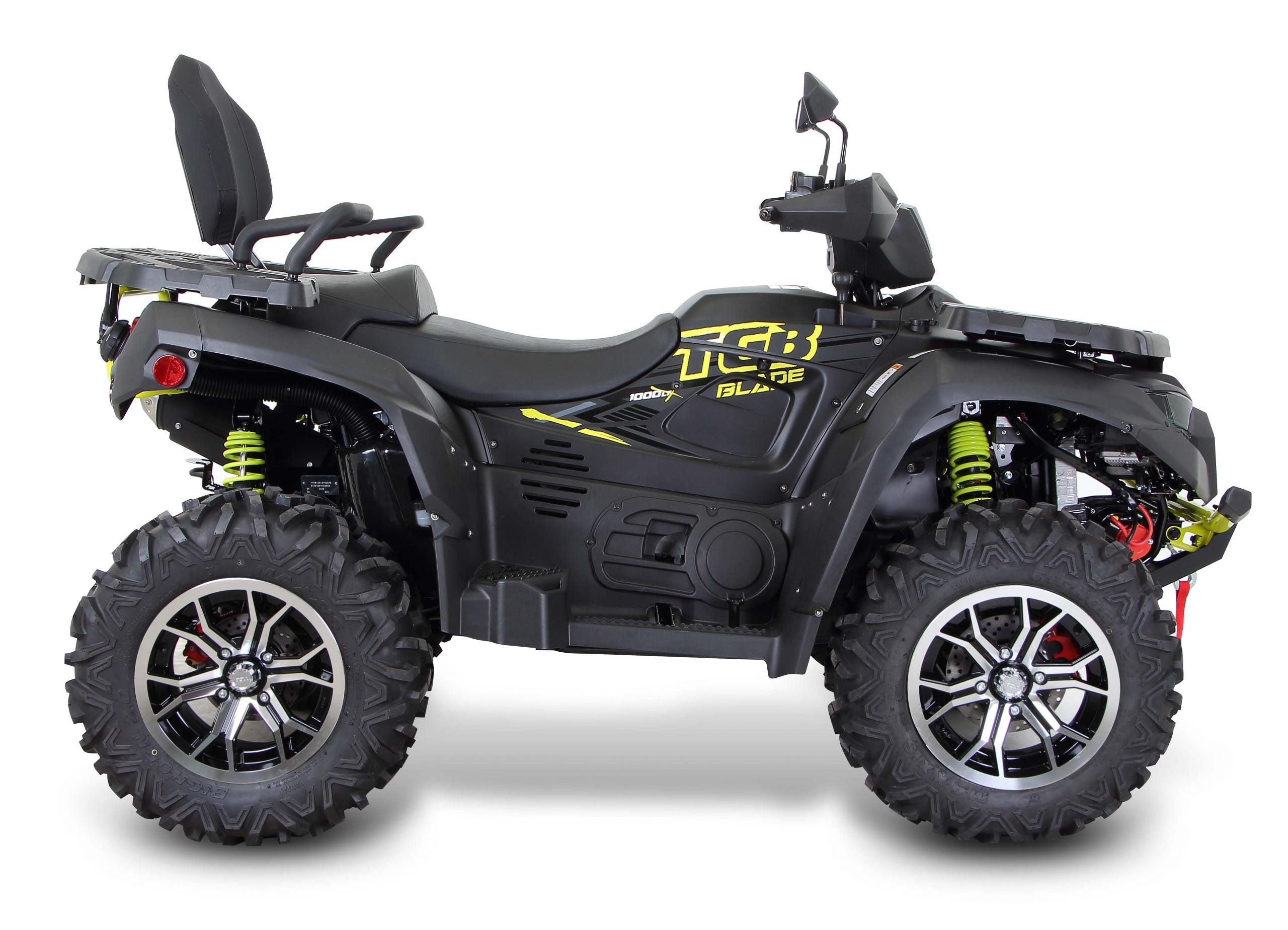

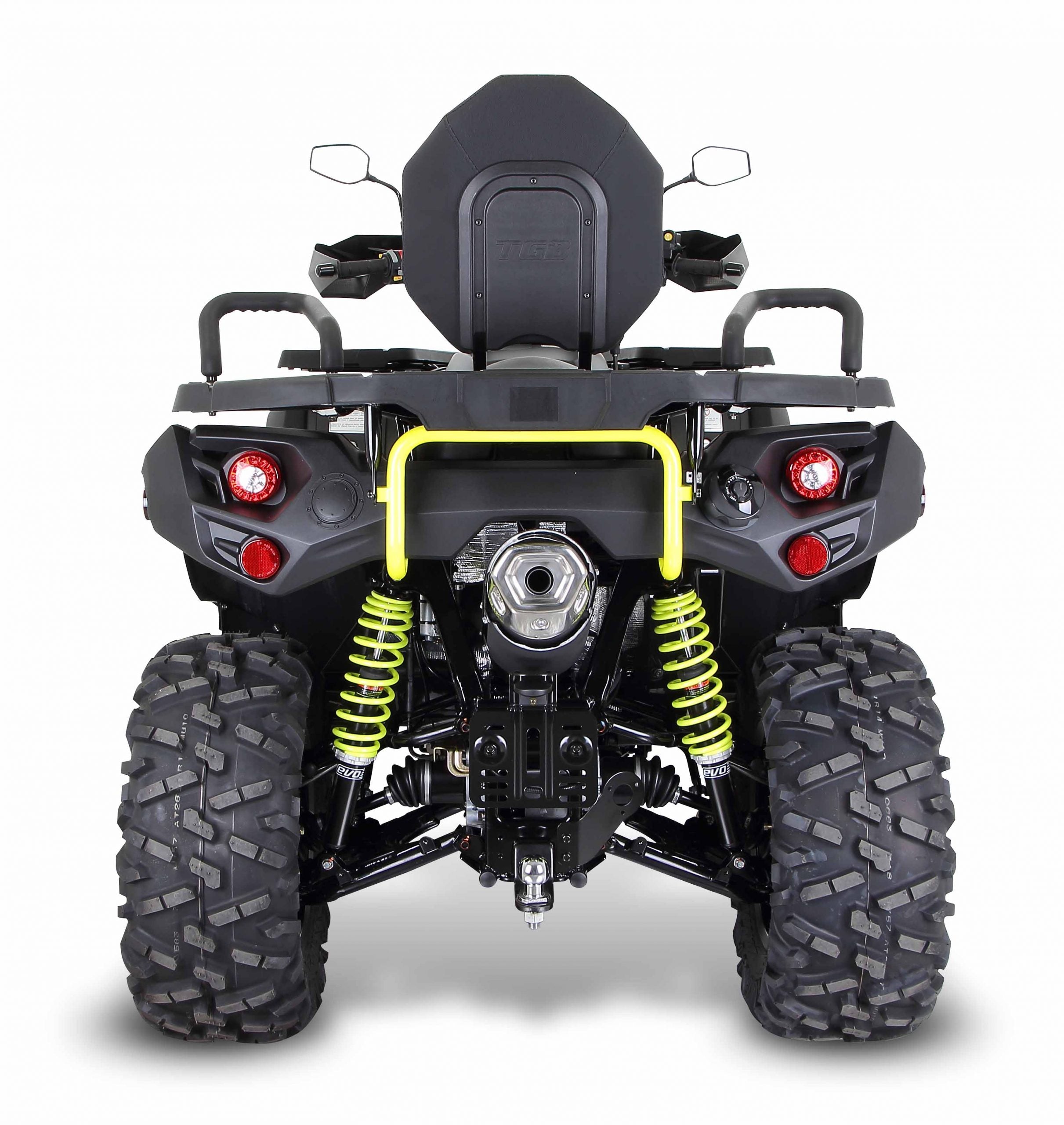

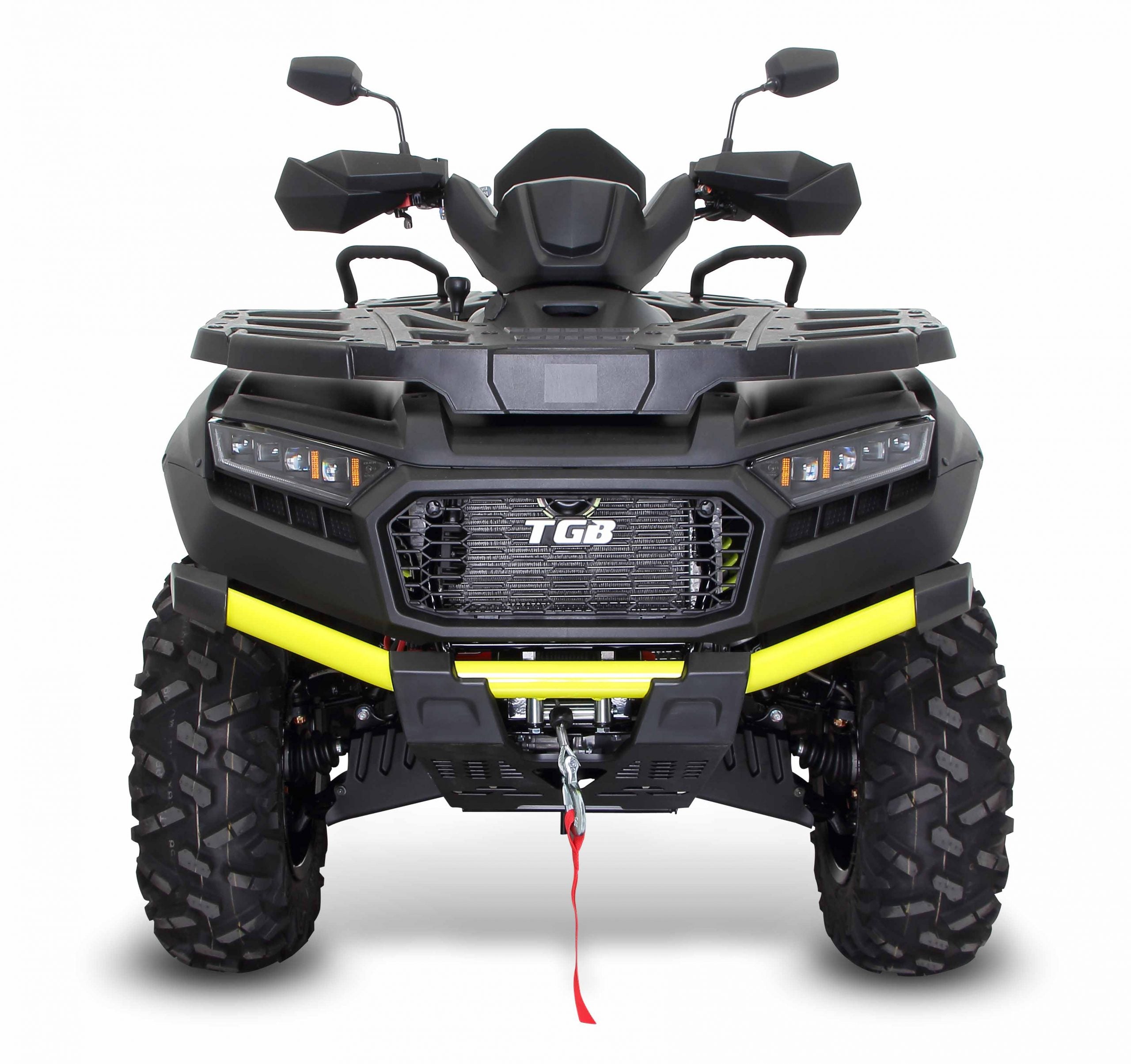

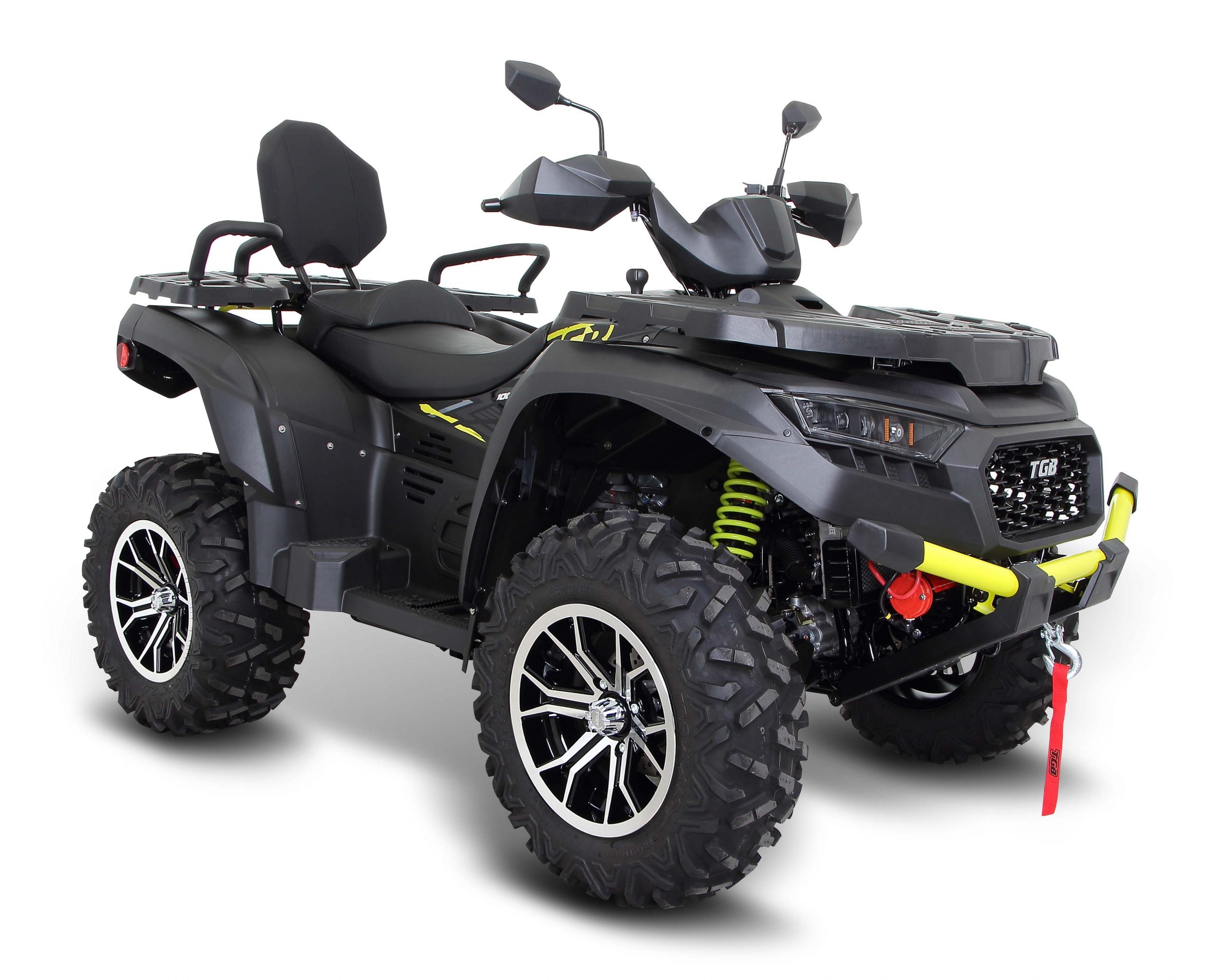

BLADE 1000 LTX-EPS ATV 997cc
Technical Specification
TGB BLADE 1000 LTX-EPS
Engine Type: 997 cc, V-twin, SOHC
Ignition: ECU
Starter: Electric
Bore X Stroke: Ø 92 × 75 mm
Compression Ratio:10.2
Fuel System: 50 mm Throttle Body / Programmed Fuel Injection
Max Power: 83 HP / 7000 rpm
Max Torque: 89.9 Nm / 5500 rpm
Drive System: 4 × 4 Shaft Drive
Gear Selection: L / H / N / R / P
Transmission: V-Belt CVT Automatic
Engine Braking System: Standard
Over Ride Button: Standard
Front Suspension: Dual A-arm
Rear Suspension: Dual A-arm with Anti-roll Bar
Front/Rear Brake: Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake: Park In Transmission / Lockable Hand Lever
Front Tire: AT 26 × 9 – 14 , 6 PLY
Rear Tire: AT 26 × 11 – 14 , 6 PLY
Wheelbase: (mm) 1460
Length/Width/Height: (mm)2340 X 1255 X 1340
Fuel Capacity: 23 L
Electrical Outlet Connector: 2 DC 12V 10A 120W
Instrumentation Digital instrument panel with odometer, speedmeter, Tripmeter, RPM, transmission position, fuel gauge,
Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator, EPS indicator
Color Matte Black with Red decal, Matte Black with Yellow decal, Mountain Grey with Red decal.
BLADE 1000 LTX-EPS ATV - watch on youtube
$250 Extra for Camo Colors (If Available)
Brand New 70% assembled inside a metal crate. Certified Technician required for Assembly,Prepp, Basic maintenance and all tech issues.Warranty covers 30 days for replacement parts only. Labor, mechanic and Returns NOT Covered.
