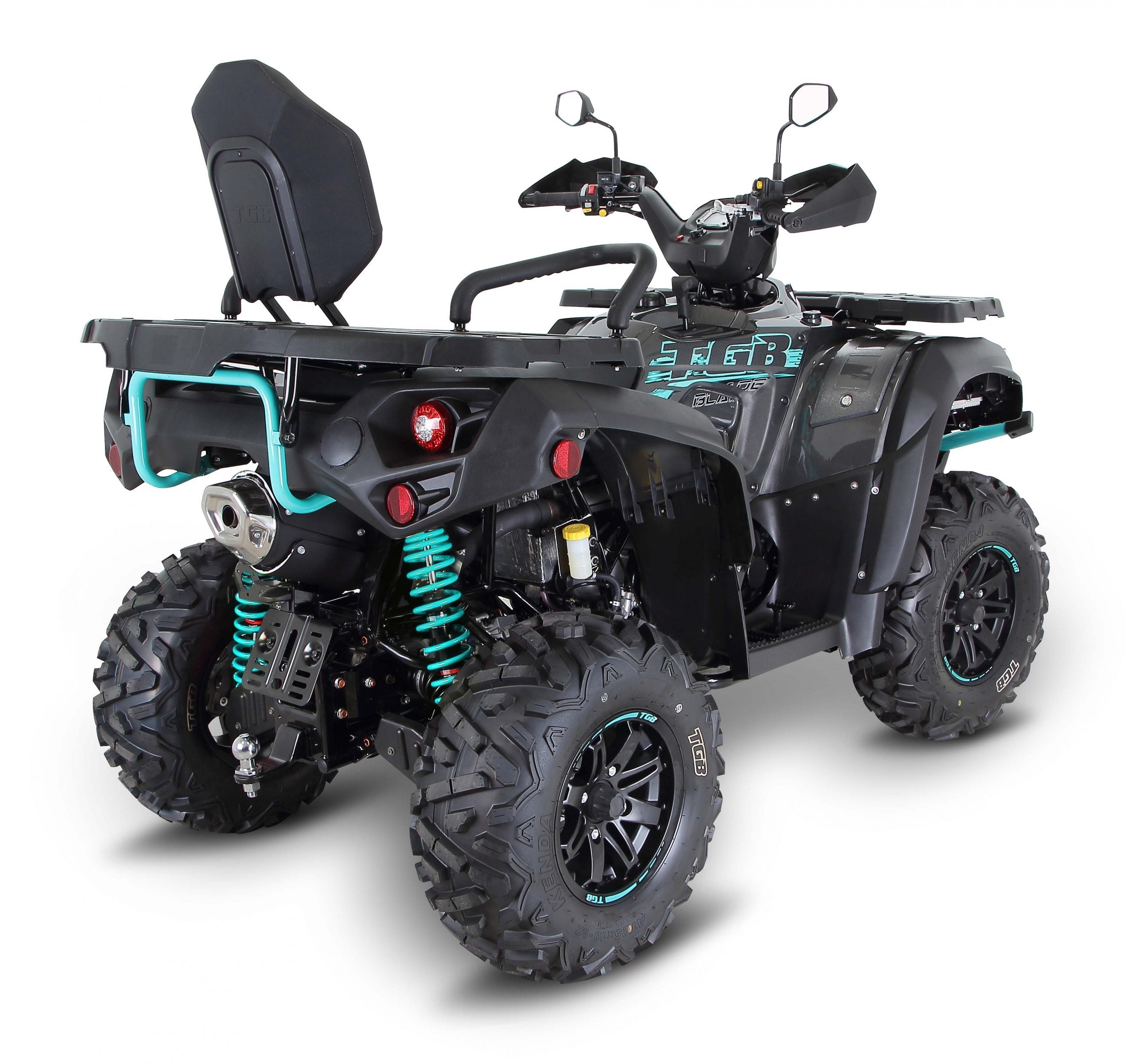

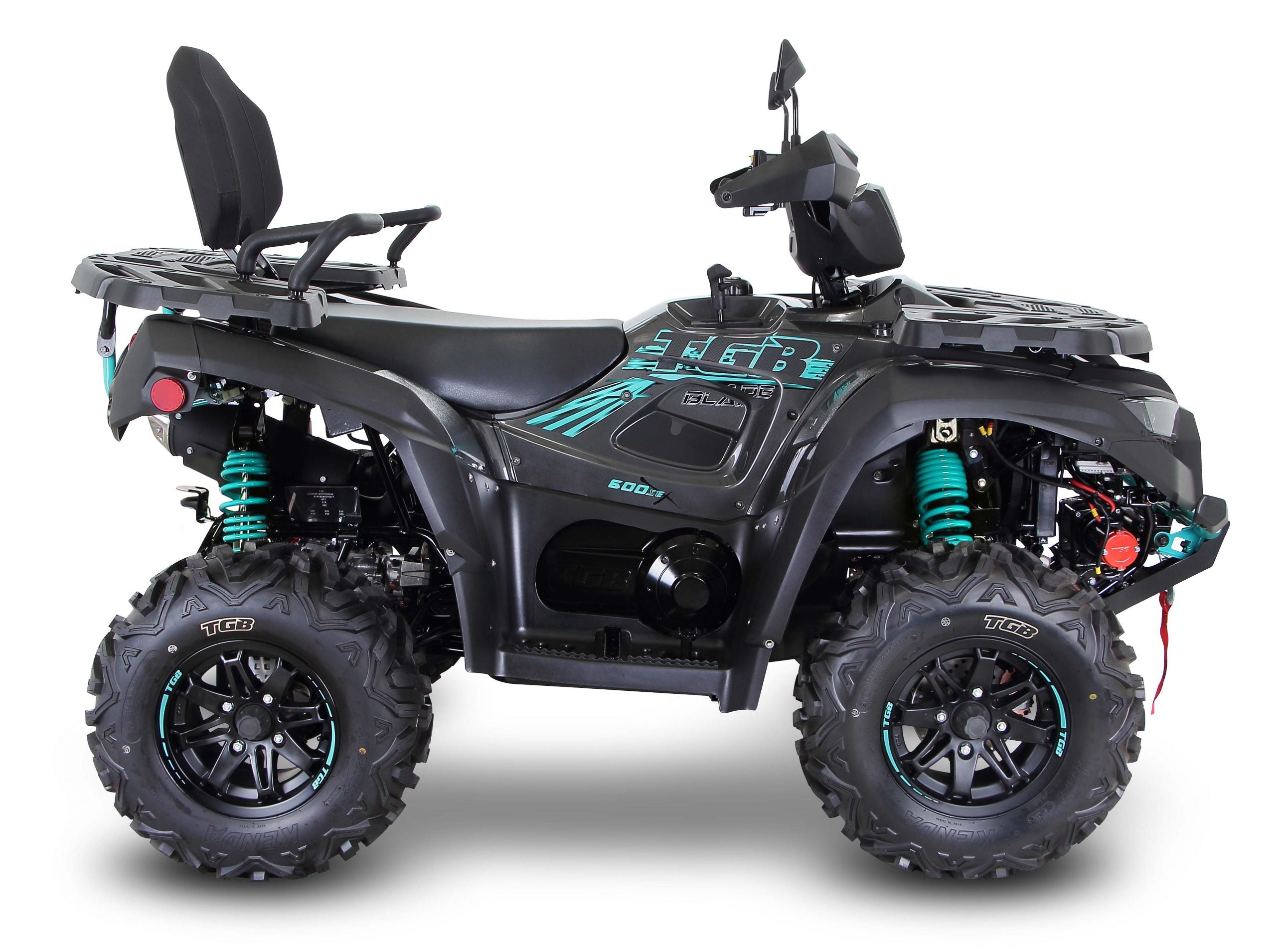

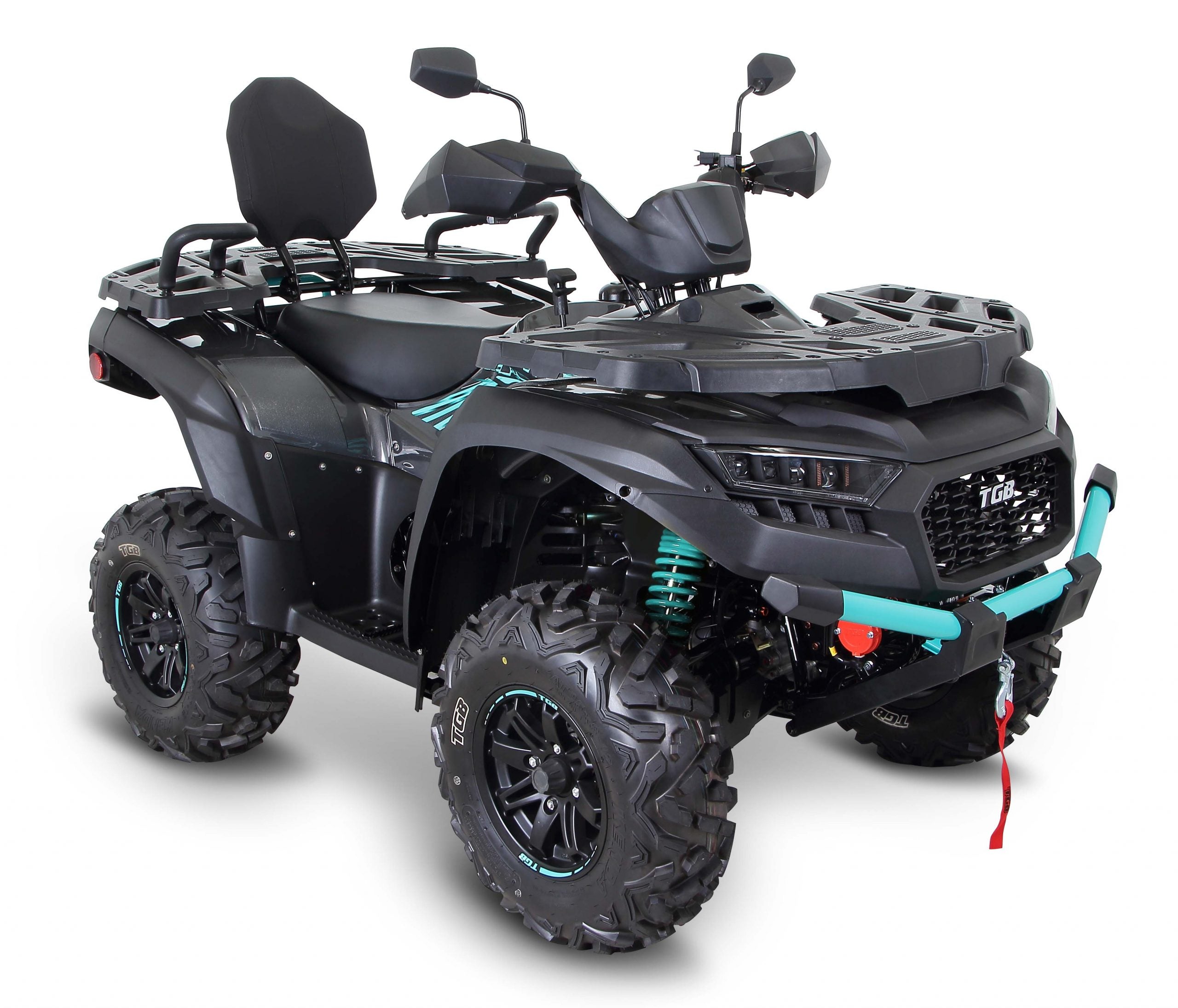

TGB BLADE 600 SE.X-EPS ATV | 561cc Single-Cylinder SOHC | Mountain Grey
12 people viewing this right now
TGB BLADE 600 SE.X-EPS ATV | 561cc Single-Cylinder SOHC | Mountain Grey
$10295
A real 4-stroke quad, sized and governed for young riders
The TGB Blade 600 SE.X-EPS ATV in Mountain Grey combines rugged engineering with refined design for riders who want balance, control, and real-world capability. This model features an extended chassis, Electric Power Steering (EPS), and a Full-LED lighting system, giving it confident road presence and dependable trail performance.
At the core is a 561cc fuel-injected single-cylinder SOHC engine that delivers steady torque and smooth power delivery. The shaft-driven 4×4 system ensures reliable traction on dirt, gravel, mud, and uneven terrain. Paired with a CVT automatic transmission, the Blade 600 SE.X-EPS keeps riding simple without sacrificing control.
Designed for comfort and durability, this ATV includes dual A-arm suspension, a rear anti-roll bar, and EPS assistance, reducing rider fatigue during long rides. A removable front radiator grille allows quick cleaning, helping maintain cooling efficiency in dusty or muddy environments. The Mountain Grey finish adds a clean, premium look while maintaining a tough, utility-ready character.
Key Features
-
561cc single-cylinder SOHC engine
-
Electric Power Steering (EPS)
-
Shaft-driven 4×4 drivetrain
-
CVT automatic transmission (L / H / N / R / P)
-
Engine braking system with override button
-
Dual A-arm suspension with rear anti-roll bar
-
Full-LED lighting with LED-matrix headlights
-
Removable front radiator grille for easy cleaning
-
Digital multifunction instrument panel
Technical Specifications
| Specification | Details |
|---|---|
| Model | TGB Blade 600 SE.X-EPS |
| Engine Type | 561cc Single Cylinder, SOHC |
| Ignition | ECU |
| Starter | Electric |
| Bore × Stroke | Ø 95 × 79.2 mm |
| Compression Ratio | 10.2 : 1 |
| Fuel System | 42 mm Throttle Body, Programmed Fuel Injection |
| Max Power | 44.8 HP @ 6500 RPM |
| Max Torque | 46.5 Nm @ 5500 RPM |
| Transmission | CVT Automatic (V-Belt) |
| Gear Selection | L / H / N / R / P |
| Drive System | Shaft Drive 4×4 |
| Engine Braking | Standard |
| Override Button | Standard |
| Front Suspension | Dual A-Arm |
| Rear Suspension | Dual A-Arm with Anti-Roll Bar |
| Front / Rear Brakes | Hydraulic Disc with Piston Calipers |
| Parking Brake | Transmission Park + Lockable Hand Lever |
| Front Tires | AT 25×8-12, 6-Ply |
| Rear Tires | AT 25×10-12, 6-Ply |
| Wheelbase | 1290 mm |
| Dimensions (L×W×H) | 2155 × 1240 × 1280 mm |
| Fuel Capacity | 18 Liters |
| Electrical Outlets | Dual DC 12V / 10A / 120W |
Instrumentation & Indicators
Digital display includes:
-
Speedometer
-
Odometer
-
Trip meter
-
RPM gauge
-
Transmission position indicator
-
Fuel gauge
-
High-temperature warning
-
Low-battery warning
-
High-beam indicator
-
EFI system check
-
Differential lock indicator
-
2WD / 4WD indicator
-
EPS status indicator
Color Options
-
Mountain Grey
-

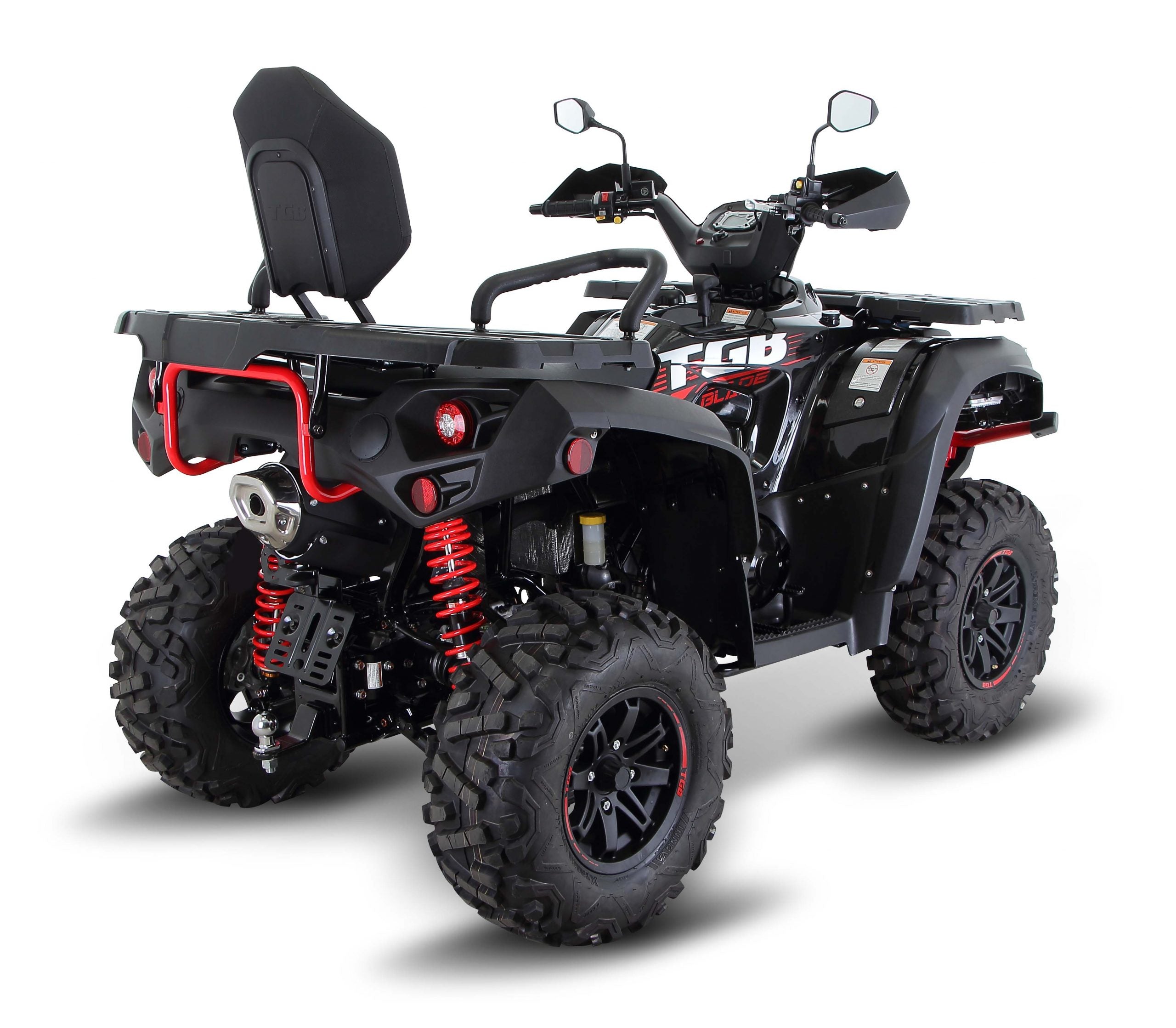

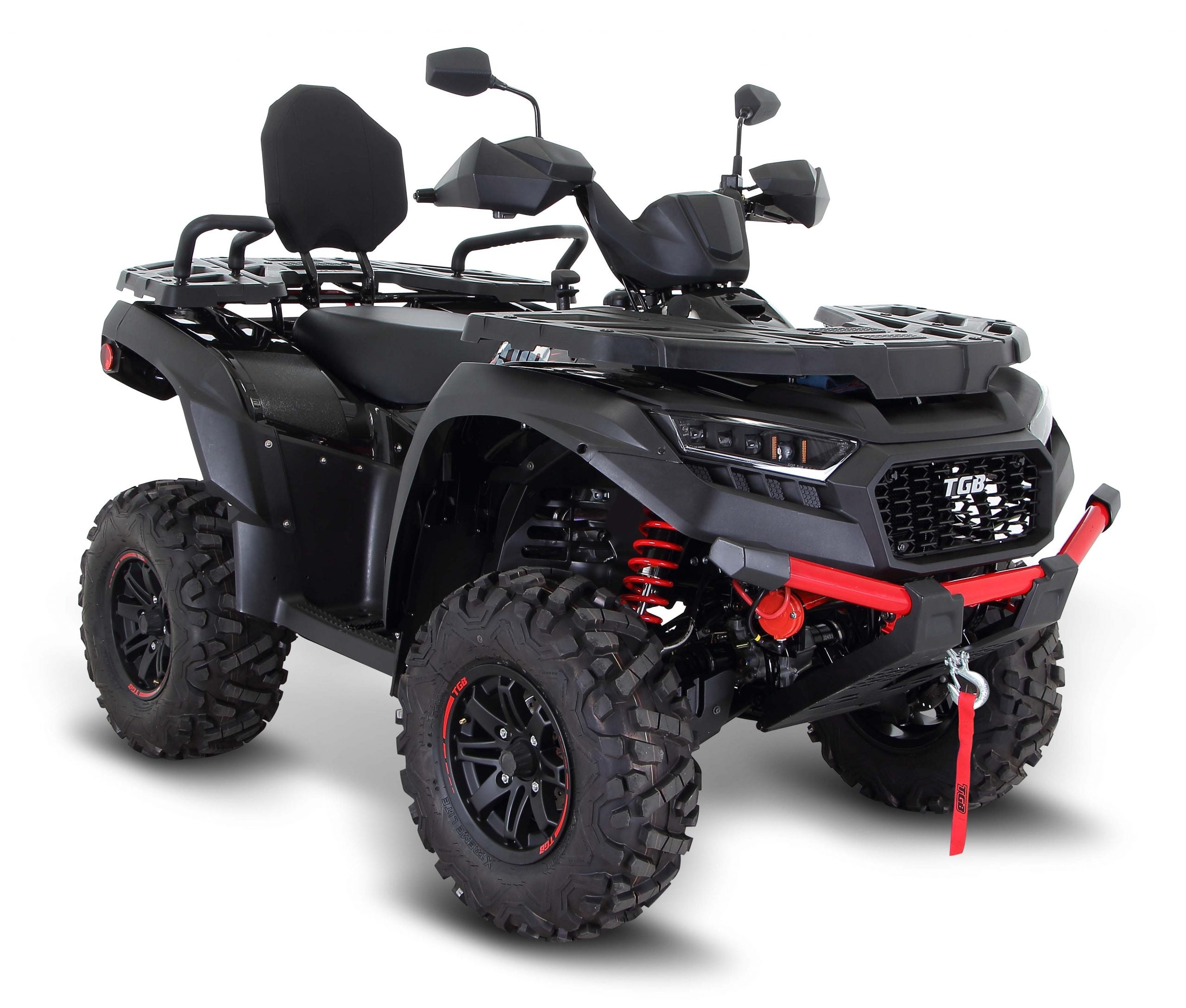

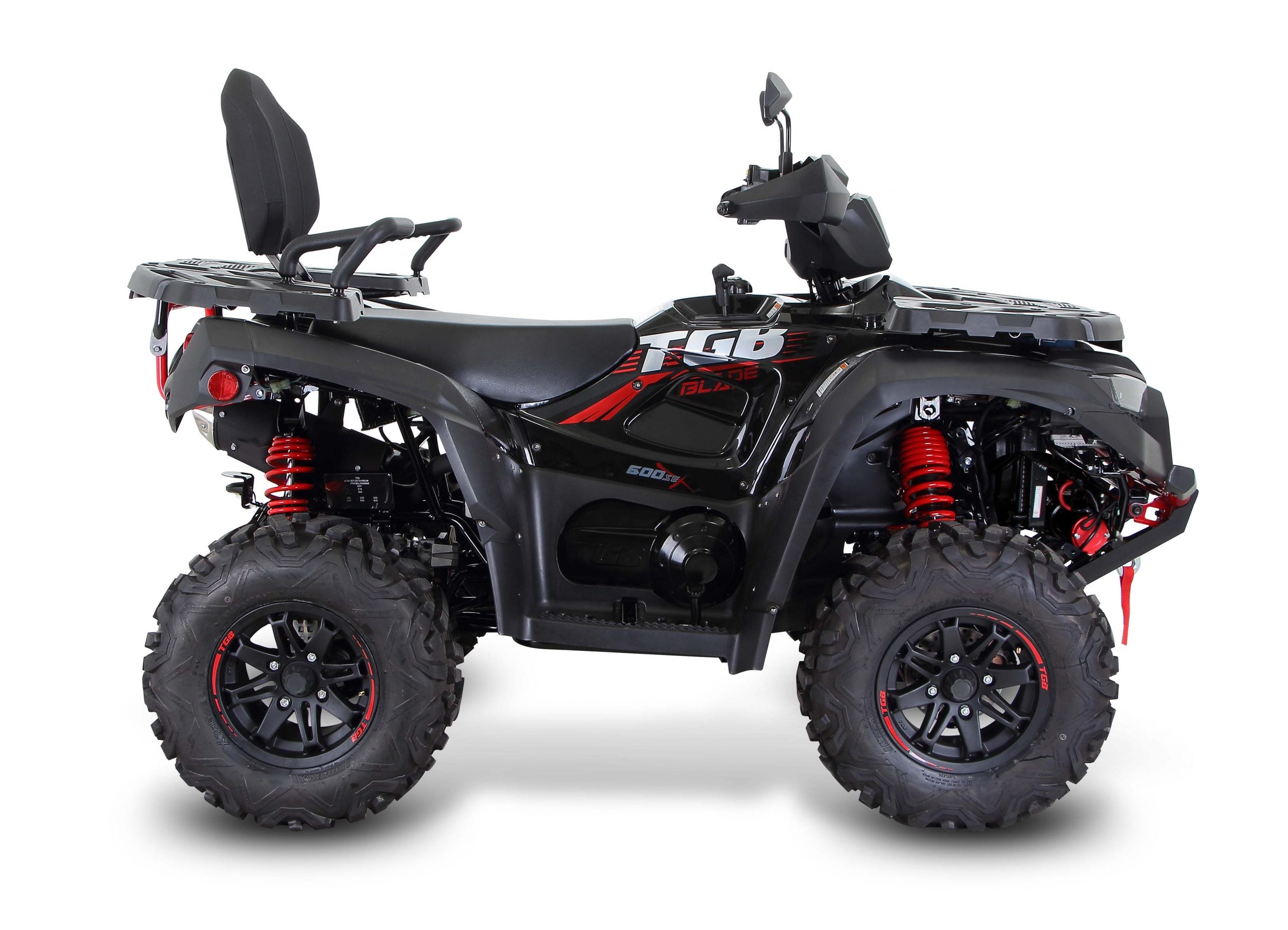

Candy Black
-
Camo colors available for $250 extra (if available)
Assembly, Warranty & Pickup
-
Brand new, 70% assembled in a metal crate
-
Certified technician required for assembly, prep, and maintenance
-
30-day replacement parts warranty only
-
Labor, mechanic services, and returns not covered
-
Assembled units available for pickup only from retail store in Dallas, Texas
Electric Start
Push-button starting — no frustrating pull cords. A backup kick-start is there if you need it.
Automatic + Reverse
Fully automatic transmission with true reverse (D-N-R) makes it effortless to ride and easy to back out of tight spots.
Digital Gear Indicator
A clear digital readout shows the selected drive mode at a glance — confidence for new riders.
Parent Remote Shut-Off
Wireless remote lets a parent cut the engine instantly from a distance. Peace of mind, built in.
Adjustable Speed Limiter
Start slow, then open it up as your rider gains skill. You stay in control of top speed.
Tether Kill Switch
An automatic safety cutoff that stops the ATV if the rider separates from the seat.
Three layers of parent control
This isn't a toy — it's a real 4-stroke ATV engineered with youth safety first. You decide how fast, and you can stop it instantly.
Wireless Remote Shut-Off
Stop the engine from up to 30 ft away.
Adjustable Speed Limiter
Cap top speed while they're learning.
Tether Kill Switch
Auto-stops if the rider leaves the seat.
Hydraulic Disc Rear Brake
Strong, reliable stopping power.
Rated 4.6 / 5 by 231 buyers
Bought this for my 9-year-old and he's obsessed. The adjustable speed limiter let me start him slow then open it up as he got confident. Arrived crated and well-packed.
Was nervous ordering a $1,200 ATV online but their phone support walked me through everything. Shipping was free and showed up in 5 days. Runs great.
Questions, answered
Yes — it's built youth-first. It includes an adjustable speed limiter so you control top speed, a wireless remote shut-off so a parent can stop the ATV instantly, and a tether kill switch. We always recommend a helmet, supervision, and gradual speed increases as your rider gains confidence.
The ATV ships about 70% assembled in a protective metal crate. Final assembly (handlebars, wheels, mirrors, fluids) takes most people under an hour. Prefer it ready to ride? Add the Pro Assembly + Safety Check option and a certified technician fully assembles, tunes, and road-tests it before it ships.
Shipping, assembly & delivery
Free freight shipping
Ships free to the lower 48 in a protective metal crate. Freight delivery includes lift-gate service, residential delivery, shipping insurance, and a scheduled appointment.
~70% pre-assembled
Final assembly and prep take most people under an hour. A certified technician is required for final assembly, prep, basic care & maintenance. Prefer it ready to ride? Add Pro Assembly.
Warranty & returns
Free 30-day replacement-parts warranty, with 6- and 12-month extensions available. Labor, mechanic services, and returns are handled through our US-based support team.
