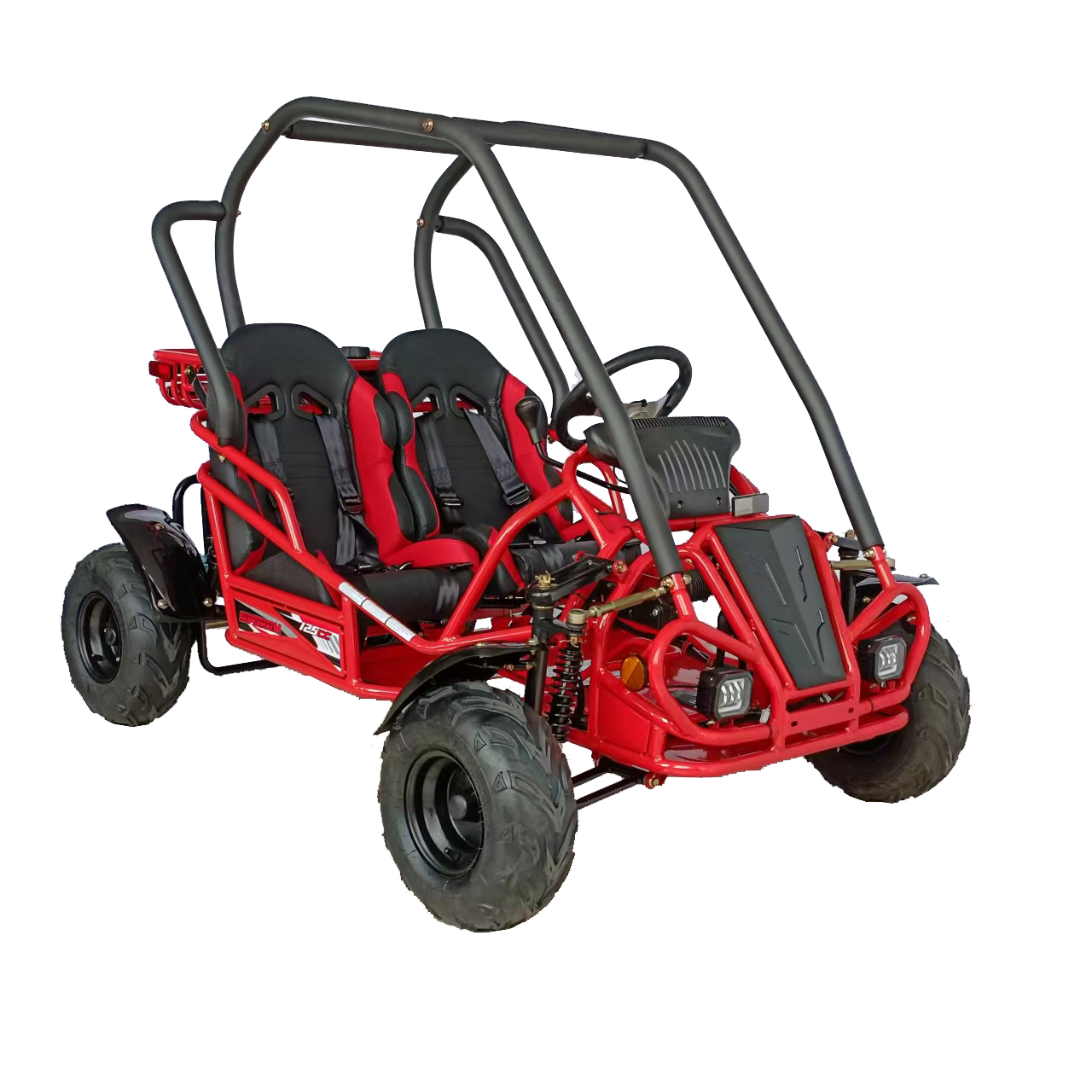

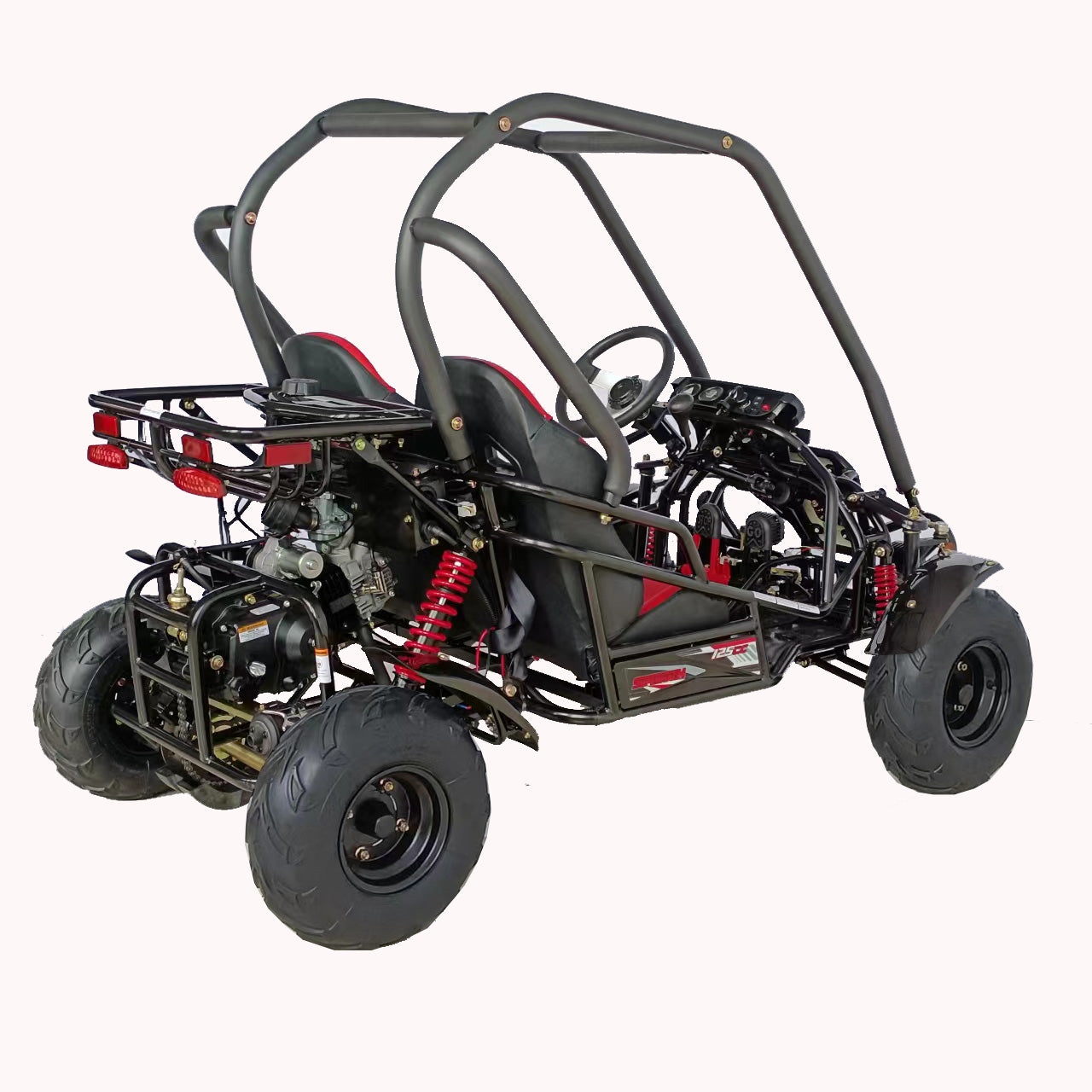

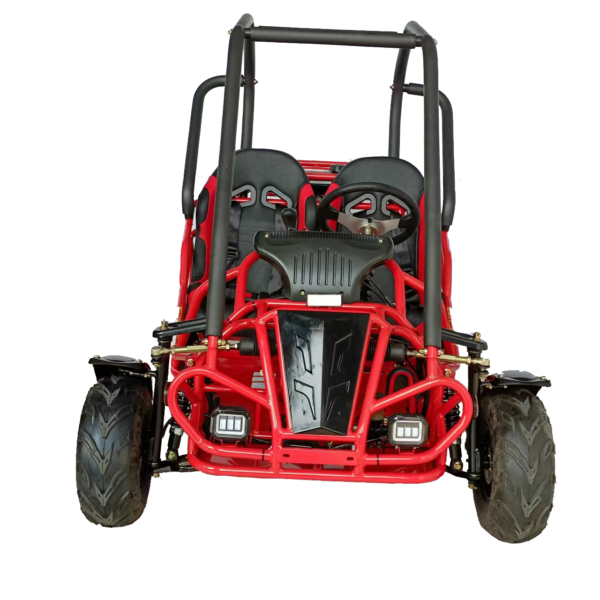

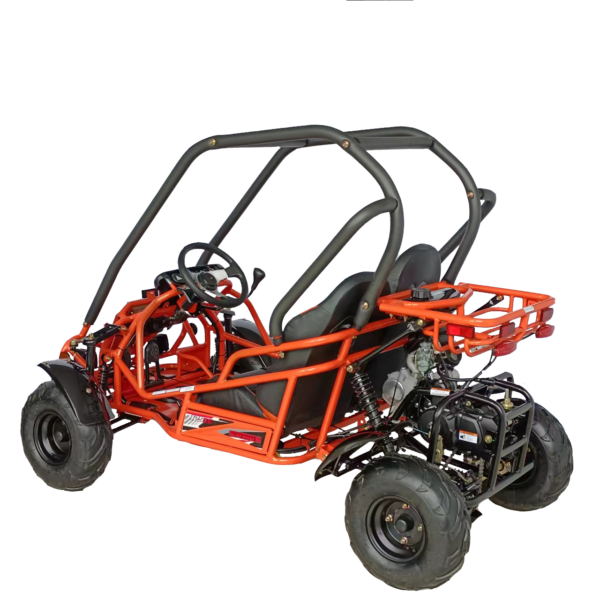

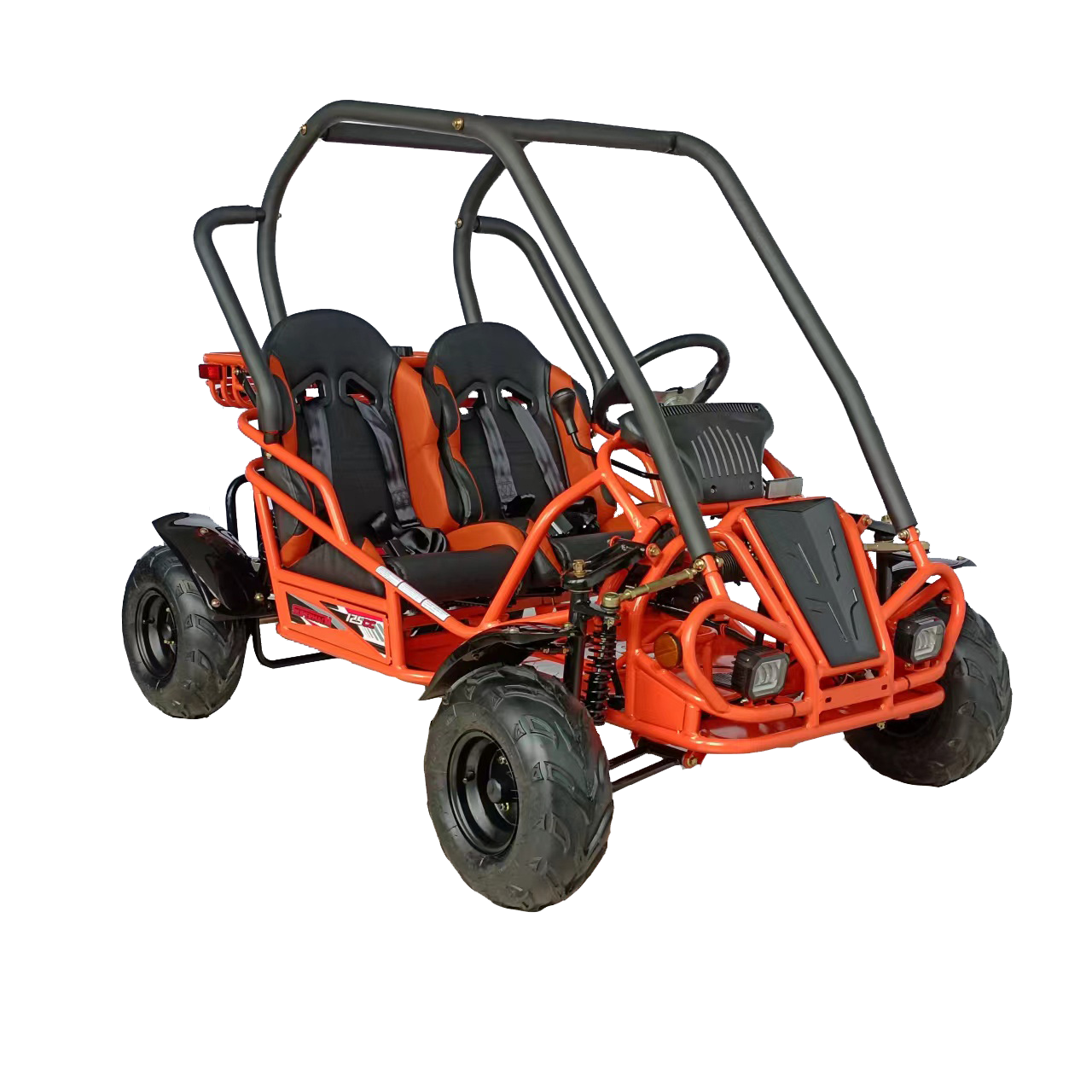

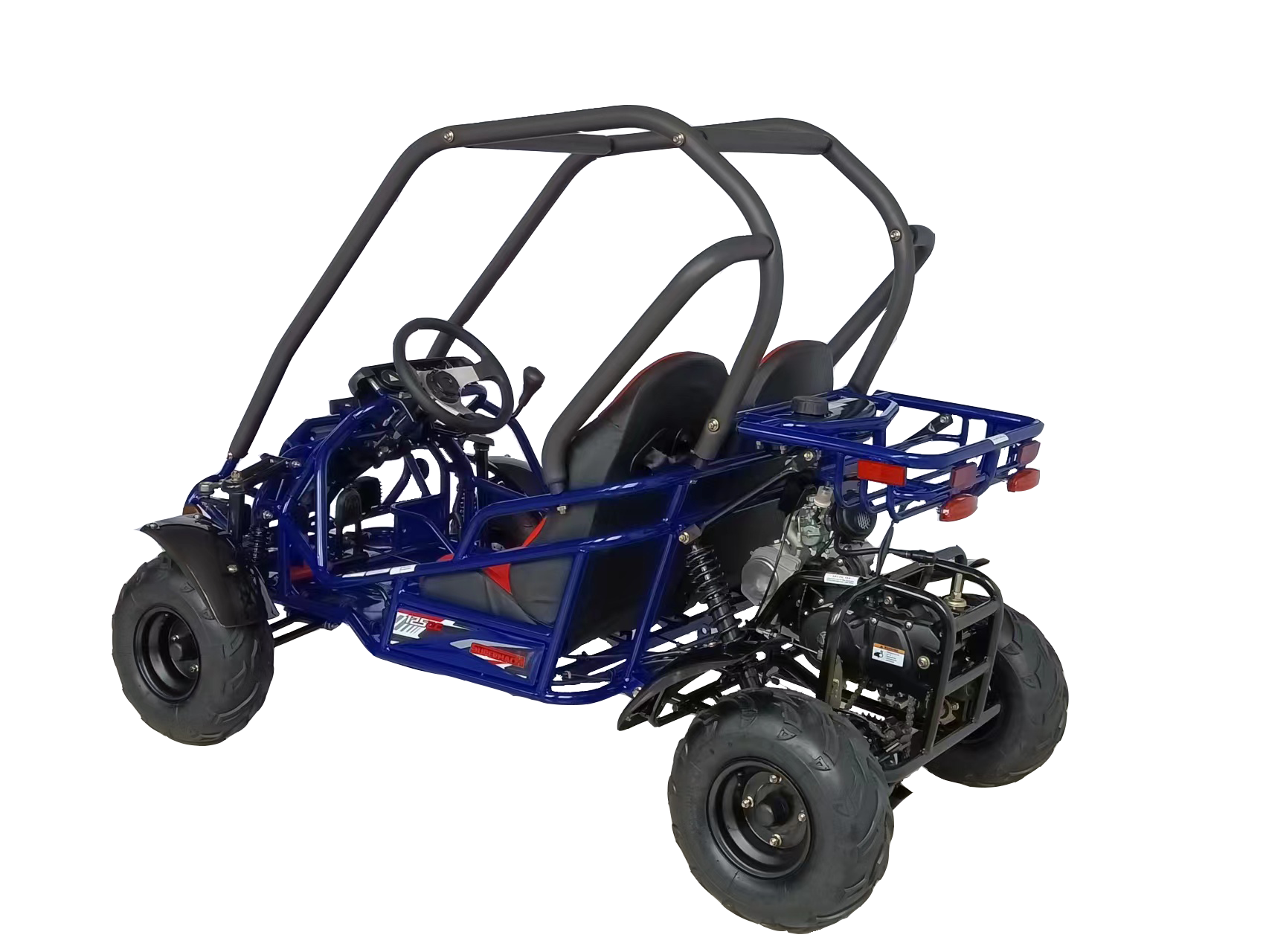

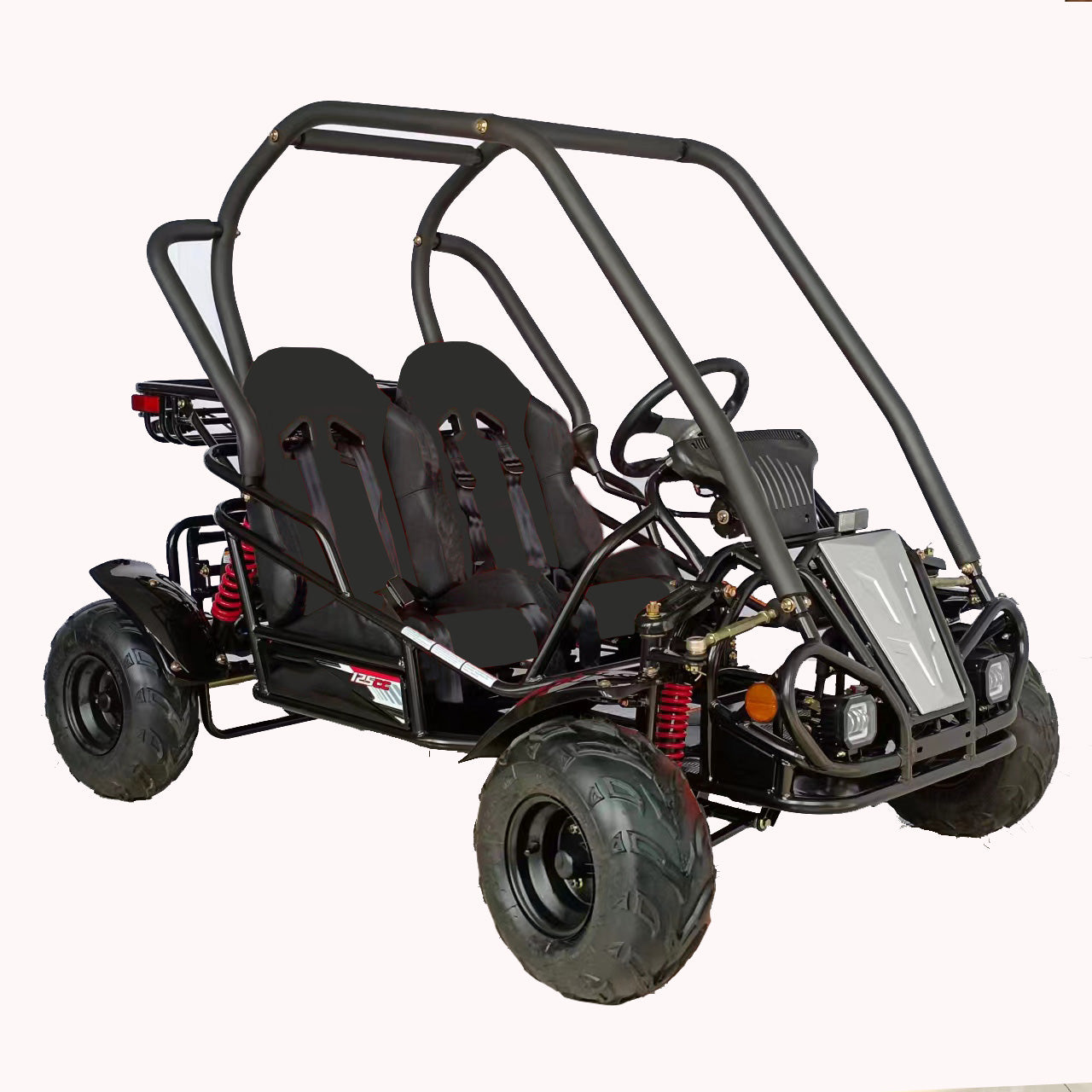

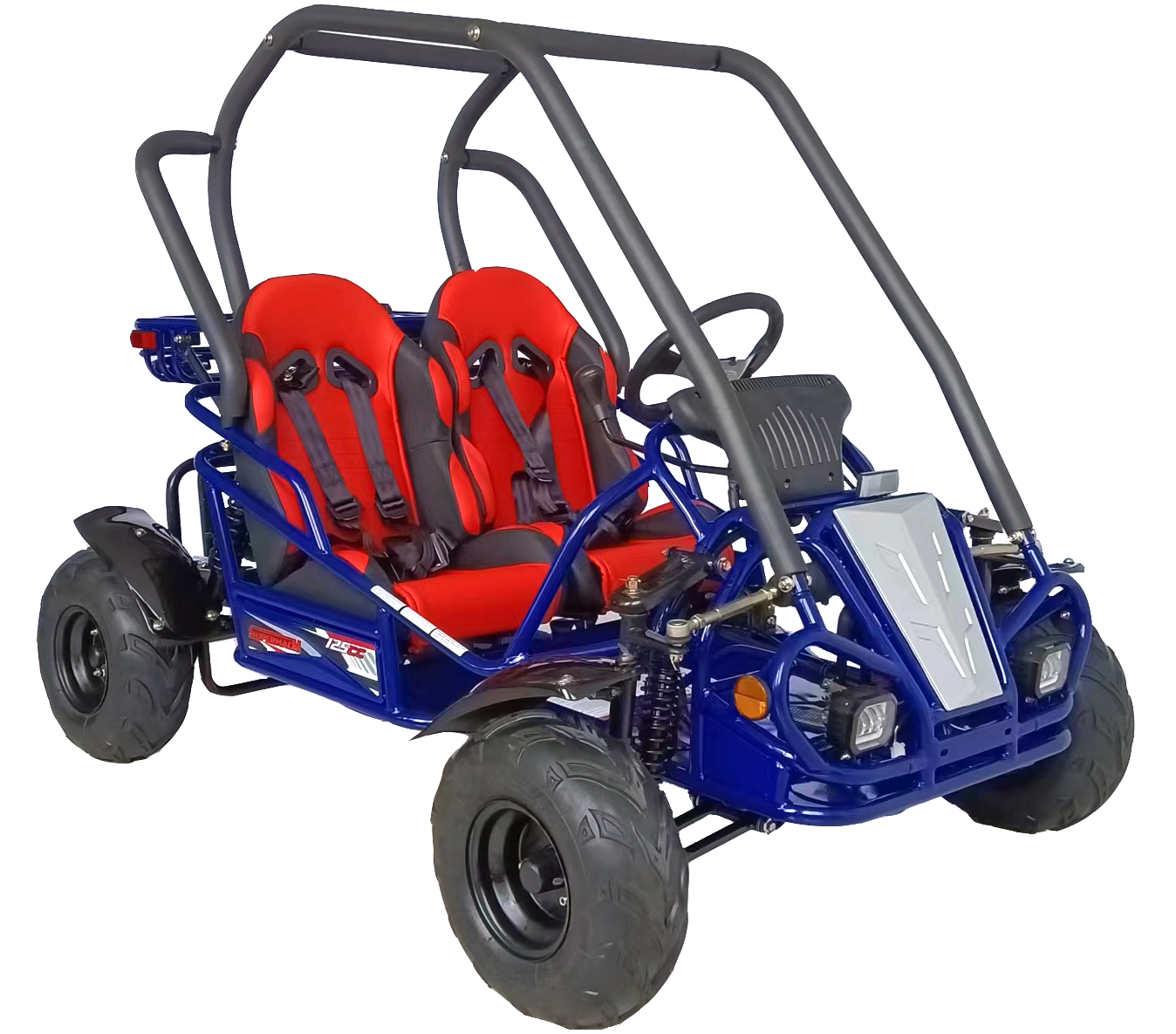

The GKT125-9 125cc Go-Kart is a compact recreational go-kart designed for controlled off-road riding and training use. It is powered by a 125cc air-cooled four-stroke single-cylinder engine paired with a chain-driven rear-wheel transmission, delivering steady power for entry-level and intermediate riders.
Starting is handled through an electric start system with CDI ignition. The engine produces 5.3 kW at 7500 RPM and 8.0 Nm of torque at 5500 RPM, offering balanced performance for trail and yard riding.
This go-kart features a steel tube frame, hydraulic disc braking, and a hand-controlled parking brake on the rear axle. Oversized 16×8-7 tires with iron rims provide traction and durability. LED headlights are included for visibility.
Features & Specifications
| Item | Details |
|---|---|
| Model | GKT125-9 |
| Engine Type | Single-cylinder, 4-stroke, air-cooled |
| Displacement | 125cc |
| Bore × Stroke | 52.4 × 55.5 mm |
| Compression Ratio | 9.1 : 1 |
| Maximum Power | 5.3 kW @ 7500 RPM |
| Maximum Torque | 8.0 Nm @ 5500 RPM |
| Transmission | Chain drive, rear wheel |
| Start System | Electric |
| Ignition | CDI |
| Fuel Grade | 87 octane or higher |
| Idle Speed | 1500 ± 150 RPM |
| Battery | 12V / 5Ah |
| Spark Plug | A7TC |
| Spark Plug Gap | 0.6 – 0.7 mm |
| Lubrication | Pressure splash type |
| Frame | Steel tube structure |
| Brake Type | Hydraulic disc |
| Parking Brake | Hand control on rear axle |
| Headlight | 35W LED (each) |
| Tire Size | 16 × 8-7 (front & rear) |
| Rim Type | Iron |
| Fuel Tank Capacity | 2 liters |
| Rated Load | 120 kg |
| Cargo Load | 15 kg |
| Net Weight | 173 kg |
| Gross Weight | 308 kg |
| Wheelbase | 1350 mm |
| Turning Radius | 3500 mm |
| Front Track | 1020 mm |
| Rear Track | 820 mm |
| Overall Length | 1820 mm (71 in) |
| Overall Width | 1220 mm (48 in) |
| Overall Height | 1330 mm (52 in) |
Why Choose the GKT125-9 Go-Kart
-
125cc four-stroke engine for controlled performance
-
Electric start for easy operation
-
Hydraulic disc brake improves stopping control
-
Steel tube frame for durability
-
Rear axle parking brake included
-
LED headlights for visibility
Assembly & Delivery
The go-kart ships brand new and 70% assembled inside a metal crate.
Final assembly, preparation, basic maintenance, and technical inspection must be completed by a certified technician.
Warranty includes 30-day replacement parts only.
Labor, mechanic costs, and returns are not covered.
Freight shipping includes:
-
Lift gate service
-
Residential delivery
-
Shipping insurance
-
Delivery appointment scheduling
⚠️ A working phone number is required for delivery appointment coordination.
