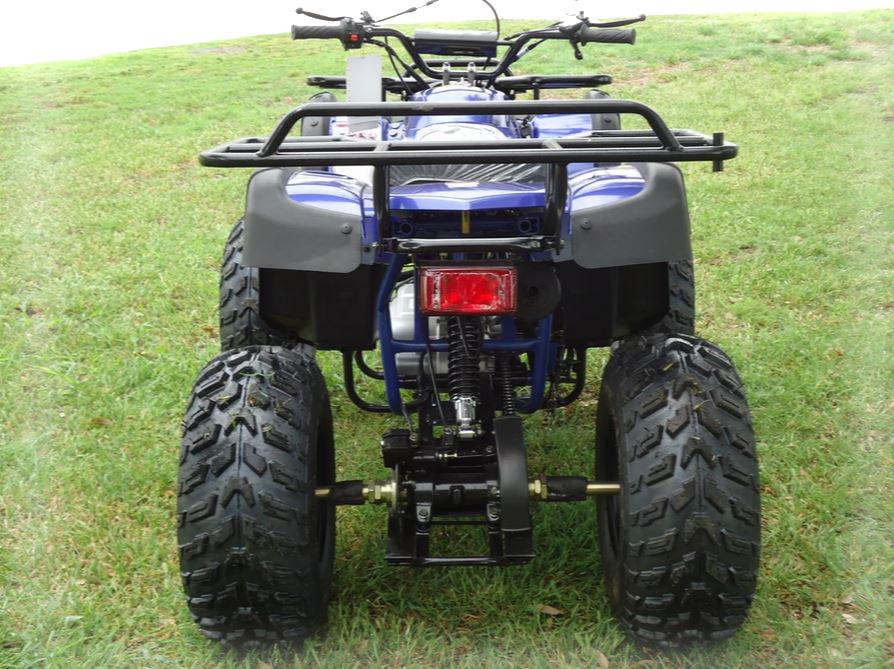

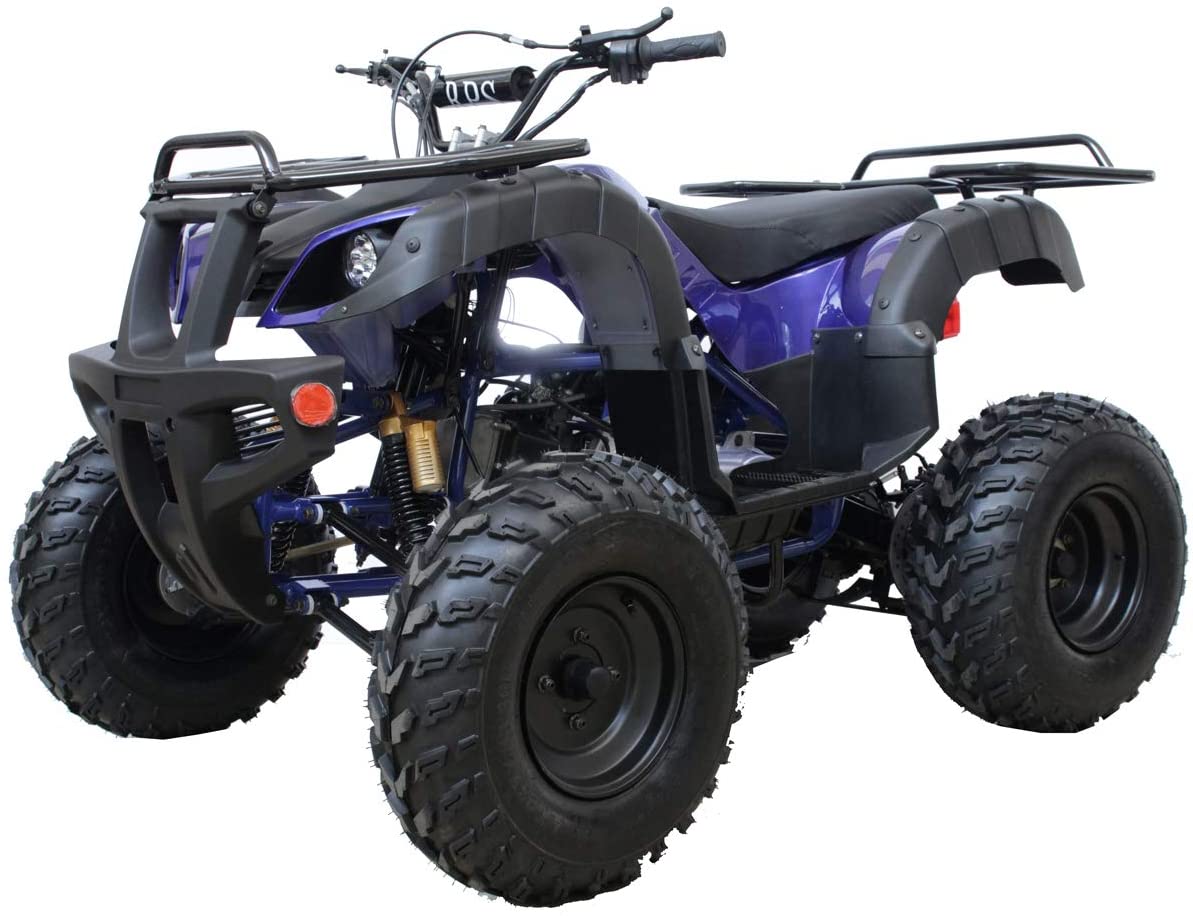

The RPS TK200-B5 is a 200cc ATV designed for off-road utility use.
It features a fully automatic transmission with reverse and electric start.
Engine & Drive
| Specification | Detail |
|---|---|
| Engine size | 200cc |
| Engine type | Single-cylinder, 4-stroke |
| Cooling | Air cooled |
| Start type | Electric start |
| Transmission | Fully automatic with reverse |
| Drive system | Chain drive |
| Fuel capacity | 4.2L |
| Ignition | CDI |
Brakes & Suspension
| Specification | Detail |
|---|---|
| Front brake | Drum (hand brake) |
| Rear brake | Hydraulic disc (foot brake) |
| Front suspension | 13.4 inches travel |
| Rear suspension | 14.2 inches travel |
Wheels & Tires
| Specification | Detail |
|---|---|
| Front tire | 21 x 7 - 10 |
| Rear tire | 20 x 10 - 10 |
| Rims | Not specified |
Dimensions
| Specification | Detail |
|---|---|
| Length | 62 inches |
| Width | 44.5 inches |
| Height | 43.3 inches |
| Seat height | 4 inches |
| Wheelbase | 43.52 inches |
| Ground clearance | 12 inches |
| Dry weight | 330 lbs |
| Gross weight | 374 lbs |
| Weight capacity | 250 lbs |
Street / Equipment Features
-
12V 9Ah battery
-
Hand shift control
Assembly & Delivery
• Ships 70% assembled inside metal crate
• Certified technician required for assembly and setup
• Liftgate included
• Residential delivery included
• Shipping insurance included
• Delivery appointment included
• Assembled unit available for pickup from retail store in Dallas, Texas
Warranty
30-day replacement parts only
Labor and returns not covered
