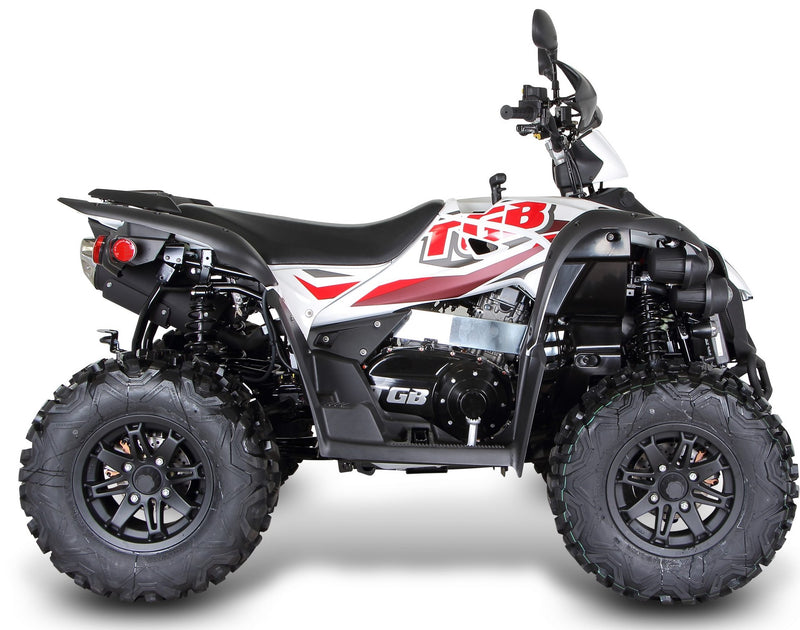

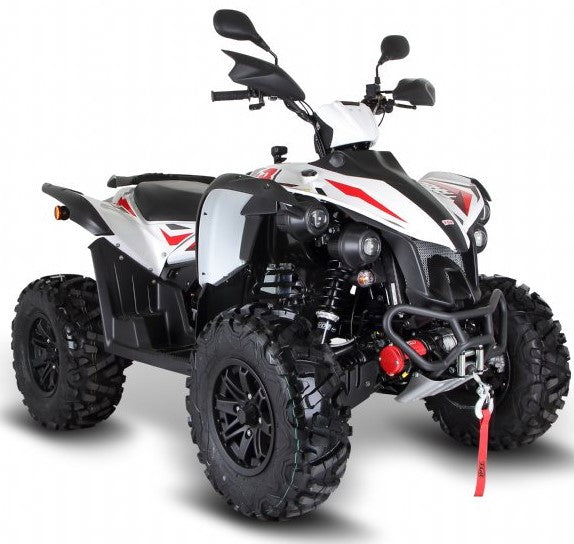

TGB TARGET 600 ATV | 561cc Single-Cylinder SOHC 4×4 | Pearl White
12 people viewing this right now
TGB TARGET 600 ATV | 561cc Single-Cylinder SOHC 4×4 | Pearl White
$11395
A real 4-stroke quad, sized and governed for young riders
The TGB TARGET 600 ATV stands out as one of the most stylish sport ATVs in the 600cc class, combining refined design with proven mechanical strength. Finished in Pearl White, this model delivers both visual impact and real-world performance for riders who want a capable 4×4 touring and sport ATV without stepping into heavier utility platforms.
Powered by a 561cc fuel-injected single-cylinder engine, the Target 600 provides strong low-end torque and smooth power delivery. Its shaft-driven 4×4 system with differential lock allows confident riding across dirt trails, gravel, mud, and uneven terrain. A specially tuned chassis, combined with dual A-arm suspension and an anti-roll bar, enhances stability and control during aggressive riding or long-distance touring.
With a CVT automatic transmission, engine braking system, and override button, the Target 600 keeps operation simple while maintaining full control on descents and technical sections. The digital instrument cluster keeps all ride data visible at a glance, making this ATV a solid choice for both recreational and utility-focused riders.
Key Highlights
-
561cc single-cylinder SOHC engine
-
Shaft-driven 4×4 system with differential lock
-
CVT automatic transmission with L / H / N / R / P
-
Engine braking system with override button
-
Dual A-arm suspension with rear anti-roll bar
-
Digital multifunction instrument cluster
-
Pearl White factory finish
-
Balanced sport and touring-focused chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | TGB Target 600 |
| Engine Type | 561cc Single Cylinder, SOHC |
| Ignition | ECU |
| Starter | Electric |
| Bore × Stroke | Ø 95 × 79.2 mm |
| Compression Ratio | 10.2 : 1 |
| Fuel System | 42 mm Throttle Body, Programmed Fuel Injection |
| Max Power | 44.8 HP @ 6500 RPM |
| Max Torque | 46.5 Nm @ 5500 RPM |
| Transmission | CVT Automatic (V-Belt) |
| Gear Selection | L / H / N / R / P |
| Drive System | Shaft Drive 4×4 |
| Engine Braking | Standard |
| Override Button | Standard |
| Front Suspension | Dual A-Arm |
| Rear Suspension | Dual A-Arm with Anti-Roll Bar |
| Front / Rear Brakes | Hydraulic Disc with Piston Calipers |
| Parking Brake | Transmission Park + Lockable Hand Lever |
| Front Tires | AT 25×8-12, 6-Ply |
| Rear Tires | AT 25×10-12, 6-Ply |
| Wheelbase | 1290 mm |
| Dimensions (L×W×H) | 1950 × 1240 × 1280 mm |
| Fuel Capacity | 18 Liters |
| Electrical Outlets | Dual DC 12V / 10A / 120W |
Instrumentation & Indicators
Digital display includes:
-
Speedometer
-
Odometer
-
Trip meter
-
RPM gauge
-
Transmission position indicator
-
Fuel gauge
-
High-temperature warning
-
Low-battery warning
-
High-beam indicator
-
EFI system check
-
Differential lock indicator
-
2WD / 4WD indicator
Color Options
-
Pearl White (standard)
-
Camo colors available for $250 extra (if available)
Assembly, Warranty & Delivery
-
Ships brand new, 70% assembled in a metal crate
-
Certified technician required for final assembly, prep, and maintenance
-
30-day replacement parts warranty only
-
Labor, mechanic services, and returns not covered
Key Highlights
Electric Start
Push-button starting — no frustrating pull cords. A backup kick-start is there if you need it.
Automatic + Reverse
Fully automatic transmission with true reverse (D-N-R) makes it effortless to ride and easy to back out of tight spots.
Digital Gear Indicator
A clear digital readout shows the selected drive mode at a glance — confidence for new riders.
Parent Remote Shut-Off
Wireless remote lets a parent cut the engine instantly from a distance. Peace of mind, built in.
Adjustable Speed Limiter
Start slow, then open it up as your rider gains skill. You stay in control of top speed.
Tether Kill Switch
An automatic safety cutoff that stops the ATV if the rider separates from the seat.
Why buy from Dallas Power Sports?
Compare and see why our ATVs offer better safety, reliability, and support.
Rated 4.9 / 5 by 219 buyers
Bought this for my 9-year-old and he's obsessed. The adjustable speed limiter let me start him slow then open it up as he got confident. Arrived crated and well-packed.
Was nervous ordering a $1,200 ATV online but their phone support walked me through everything. Shipping was free and showed up in 5 days. Runs great.
Questions, answered
Yes — it's built youth-first. It includes an adjustable speed limiter so you control top speed, a wireless remote shut-off so a parent can stop the ATV instantly, and a tether kill switch. We always recommend a helmet, supervision, and gradual speed increases as your rider gains confidence.
The ATV ships about 70% assembled in a protective metal crate. Final assembly (handlebars, wheels, mirrors, fluids) takes most people under an hour. Prefer it ready to ride? Add the Pro Assembly + Safety Check option and a certified technician fully assembles, tunes, and road-tests it before it ships.
Shipping, assembly & delivery
Free freight shipping
Ships free to the lower 48 in a protective metal crate. Freight delivery includes lift-gate service, residential delivery, shipping insurance, and a scheduled appointment.
~70% pre-assembled
Final assembly and prep take most people under an hour. A certified technician is required for final assembly, prep, basic care & maintenance. Prefer it ready to ride? Add Pro Assembly.
Warranty & returns
Free 30-day replacement-parts warranty, with 6- and 12-month extensions available. Labor, mechanic services, and returns are handled through our US-based support team.
