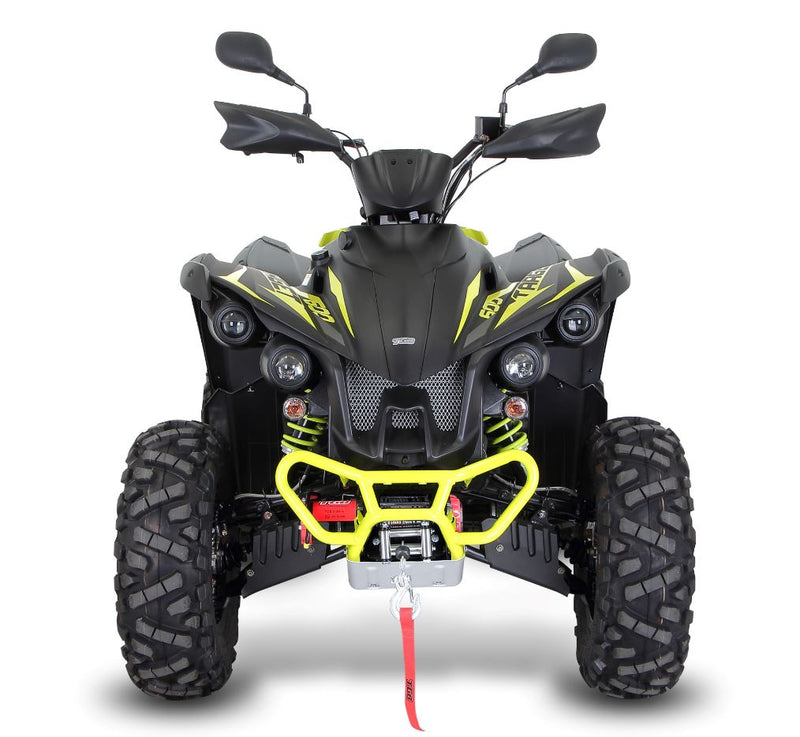

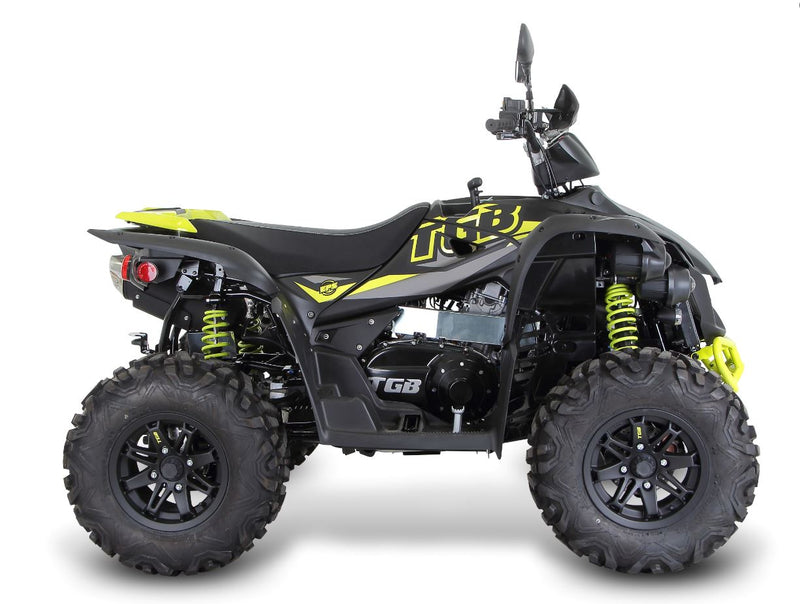

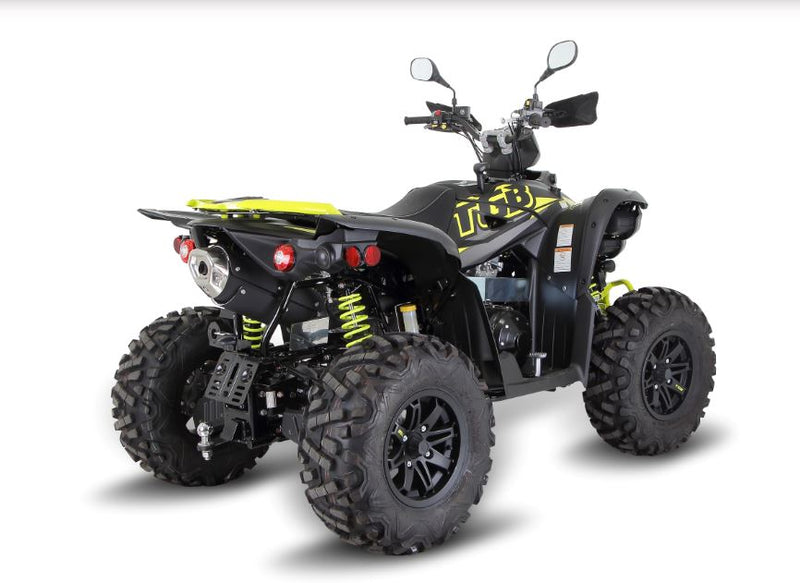

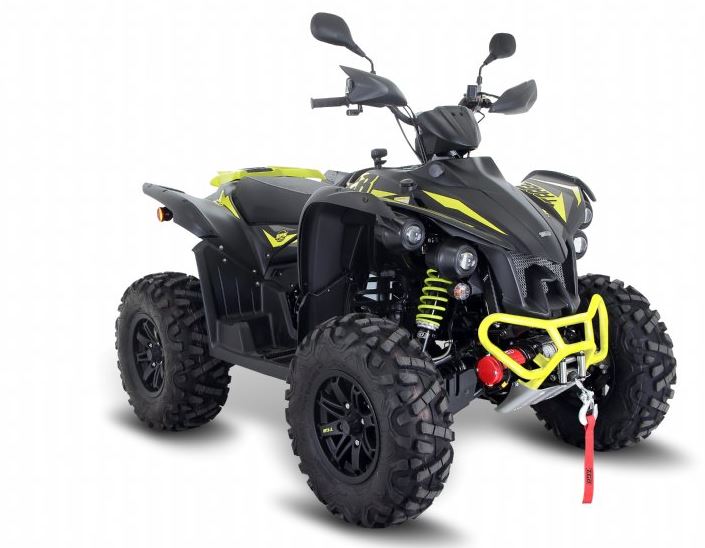

TARGET 600-EPS 561cc ATV
Technical Specification
TGB TARGET 600 EPS ATV
watch on youtube
Engine Type: 561 cc,Single Cylinder, SOHC
Ignition:ECU
Starter:Electric
Bore X Stroke:Ø 95 × 79.2 mm
Compression Ratio:10.2
Fuel System: 42 mm Throttle Body / Programmed Fuel Injection
Max Power:44.8 HP / 6500 rpm
Max Torque:46.5 Nm / 5500 rpm
Drive System:4 × 4 Shaft Drive
Gear Selection:L / H / N / R / P
Transmission:V-Belt CVT Automatic
Engine Braking System:Standard
Over Ride Button:Standard
Front Suspension:Dual A-arm
Rear Suspension Dual A-arm with Anti-roll Bar
Front/Rear Brake: Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake: Park In Transmission / Lockable Hand Lever
Front Tire: AT 25 × 8 – 12 , 6 PLY
Rear Tire: AT 25 × 10 – 12 , 6 PLY
Wheelbase (mm): 1290
Length/Width/Height:(mm)1950 X 1240 X 1280
Fuel Capacity: 18 L
Electrical Outlet Connector: 2 DC 12V 10A 120W

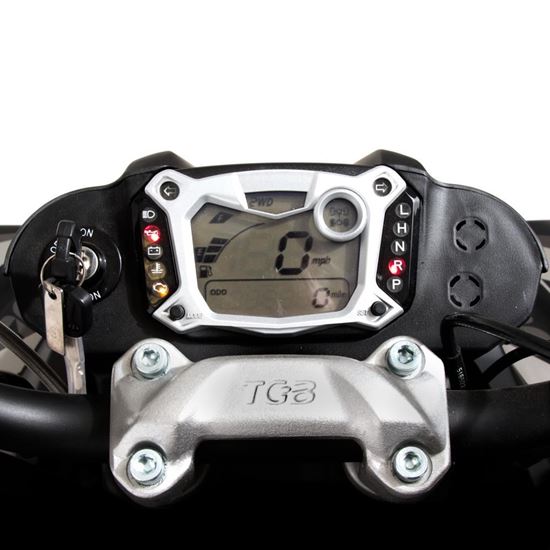

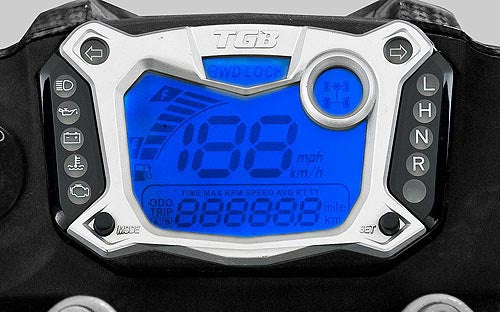

Instrumentation Digital instrument panel with odometer, speedmeter,Tripmeter, RPM, transmission position, fuel gauge,
Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator,EPS indicator
SKU" TGBTA600EPSBY
Color: Matte Black
Brand New 70% assembled inside a metal crate. Certified Technician required for Assembly,Prepp, Basic maintenance and all tech issues.Warranty covers 30 days for replacement parts only. Labor, mechanic and Returns NOT Covered.
