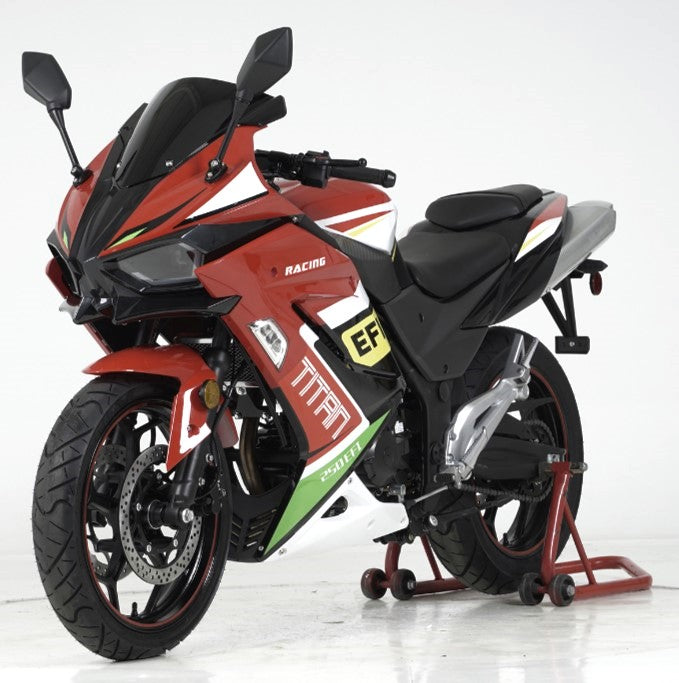

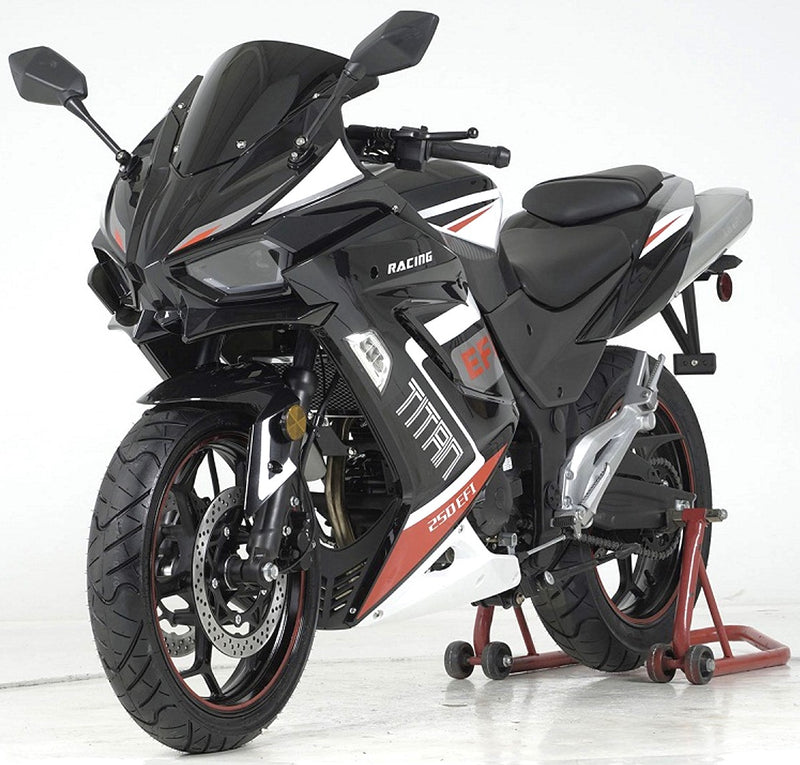

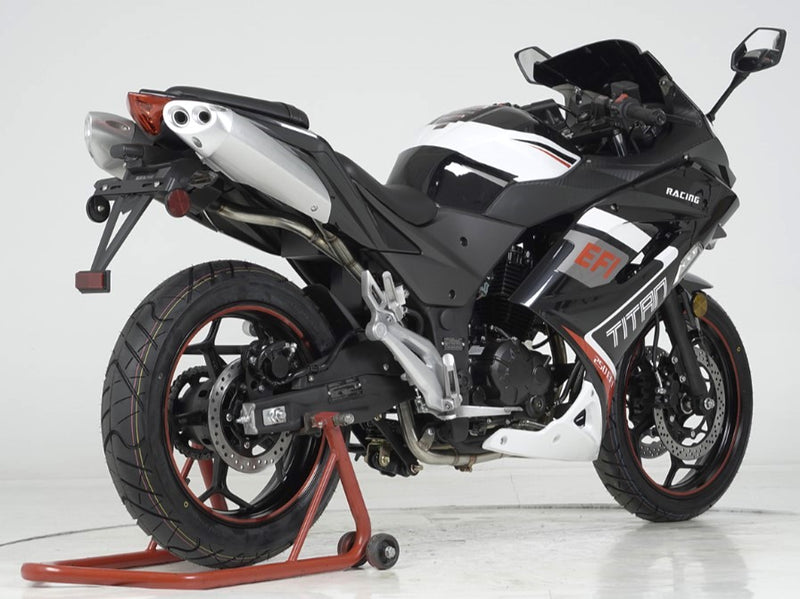

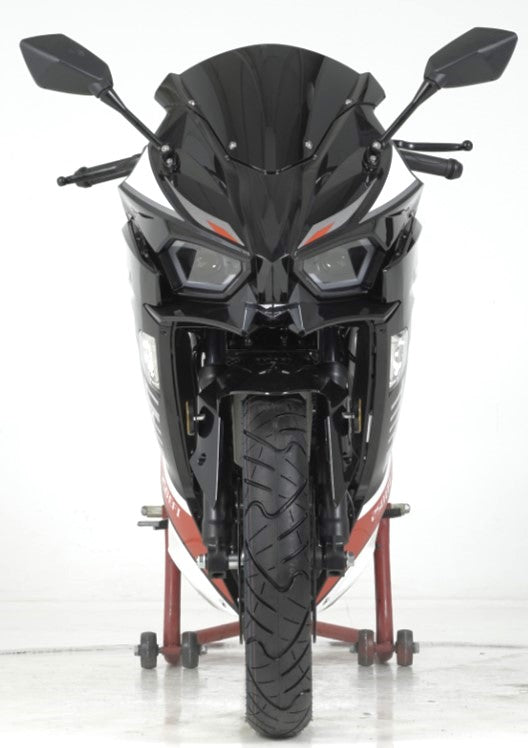

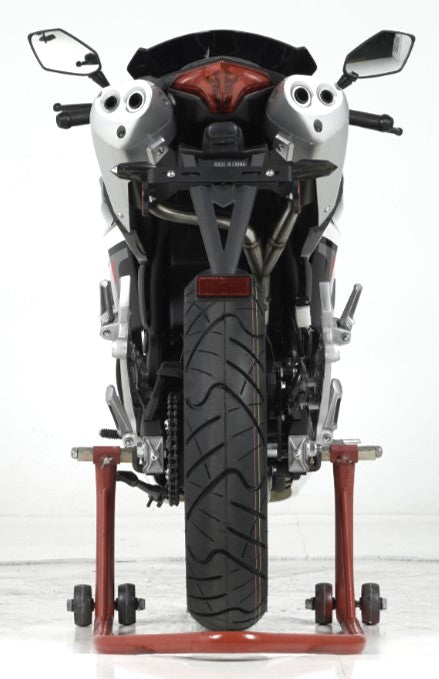

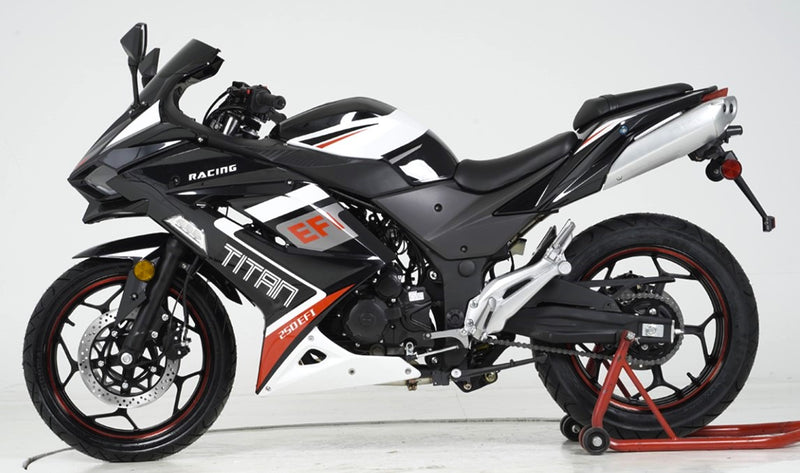

TITAN 250 EFI - Manual 6 Speed
Model TITAN250
Complete Vehicle: Length X width X height 80.7" X 27.9" X 41.7"
Wheelbase: 56.7"
Curb weight: 309 LBS
Rated load: 474 LBS
Max. speed :75 mph
Brake type （ Front / Rear ） DISC
Brake Operating （ Front / Rear ） HANDS BRAKE
Wheel Rim （ Front / Rear ) 3.0*17 / 4.0*17
Tire size （ Front / Rear ） 110/70-17 / 140/70-17
Engine Engine Model No. ZS165FMM-L
Make ZONG SHEN
Identification / Type Single Cyliner,Oil-cooling with Balancer
Bore × Stroke mm 65.5×66.2
Engine capacity cc 250
Compression Ratio 9.2:1
Max. Power kW/(r/min) 12kW/7500r/min
Max. Torque N · m/(r/min) 18Nm/5500r/min
Mini. Idle Speed r/min 1600r/min±100
Lubrication Forced lubrication
Lubricant Type SJ10W/40
Clutch Type Oil-bathing multi-plate clutch
Starting Electronic
Ignition EFI
Assembled one is only available for pick up from retail store in Dallas Texas
Brand New 70% assembled inside a metal crate.
Certified Technician required for Assembly, Prepp,
Basic maintenance and all tech issues.
Warranty covers 30 days for replacement parts only. Labor,
mechanic and Returns NOT Covered.
Lift gate included Residential included Shipping insurance include
Delivery Appointment Included
