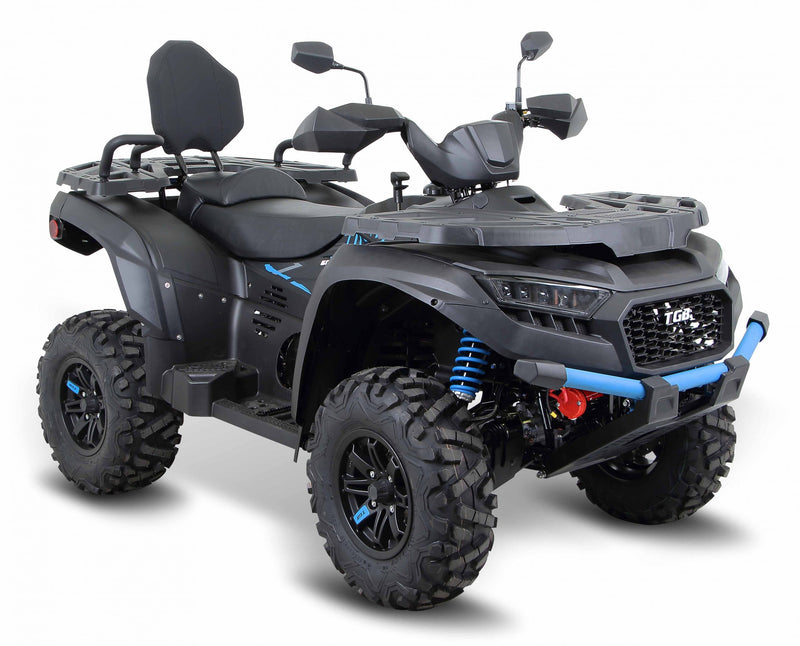

The BLADE 600 LTX EPS is a full-size 4x4 utility ATV built for two riders. It uses a 561cc single-cylinder SOHC engine with electronic fuel injection and a CVT automatic gearbox. Electric power steering (EPS) helps reduce handlebar effort on rough ground and during slow turns.
A shaft drive system sends power to all four wheels. The front and rear dual A-arm suspension keeps the ride stable on rocks, mud, and uneven trails. Full hydraulic disc brakes provide strong and consistent stopping power.
The long wheelbase and extended seat allow a second passenger without crowding the rider. LED matrix headlights and full LED lighting improve night visibility. A removable front grille makes radiator cleaning easy after dusty or muddy rides.
This model comes from TGB, known for heavy-duty chassis design and reliable fuel-injected engines in the utility ATV class.
Key Features
-
561cc single-cylinder SOHC engine
-
Electronic Fuel Injection (EFI)
-
CVT automatic transmission with L / H / N / R / P
-
Electric Power Steering (EPS)
-
4×4 shaft drive with differential control
-
Dual A-arm front and rear suspension
-
Hydraulic disc brakes front and rear
-
Two-passenger extended seat
-
Full LED lighting and digital instrument panel
-
Dual 12V DC power outlets
Technical Specifications
| Item | Specification |
|---|---|
| Engine Type | 561 cc, Single Cylinder, SOHC |
| Fuel System | 42 mm Throttle Body, EFI |
| Max Power | 44.8 HP @ 6500 rpm |
| Max Torque | 46.5 Nm @ 5500 rpm |
| Transmission | V-belt CVT Automatic |
| Drive System | 4×4 Shaft Drive |
| Gear Selection | L / H / N / R / P |
| Ignition | ECU Controlled |
| Starter | Electric |
| Front Suspension | Dual A-arm |
| Rear Suspension | Dual A-arm with Anti-roll Bar |
| Brakes | Hydraulic Disc (Front & Rear) |
| Parking Brake | Transmission Park + Hand Lever Lock |
| Front Tires | AT 25×8-12, 6 PLY |
| Rear Tires | AT 25×10-12, 6 PLY |
| Wheelbase | 1450 mm |
| Dimensions (L×W×H) | 2360 × 1235 × 1280 mm |
| Fuel Capacity | 18 L |
| Electrical Output | 2 × 12V DC (10A each) |
Instrument Panel Readouts
-
Speed
-
RPM
-
Odometer and trip meter
-
Gear position
-
Fuel level
-
Engine temperature warning
-
Battery warning
-
2WD / 4WD indicator
-
Differential lock indicator
-
EPS status light
Colors
Matte Black, Matte Silver
(Camo options available with extra cost if in stock)
Assembly & Warranty Notes
-
Ships 70% assembled in crate
-
Professional assembly required
-
30-day parts replacement warranty only
-
Labor and returns not covered
