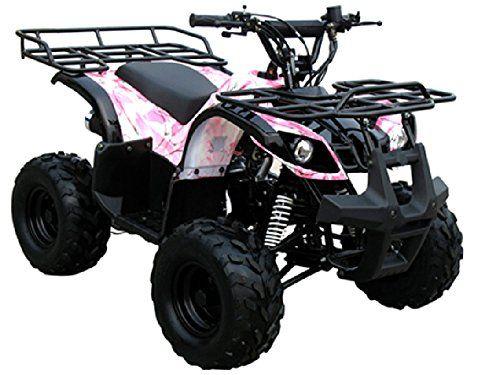

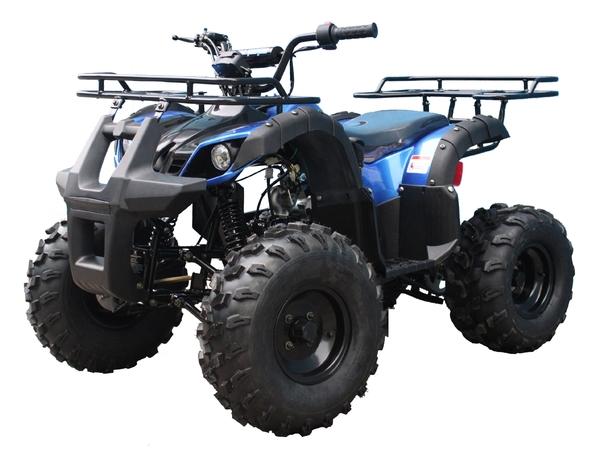

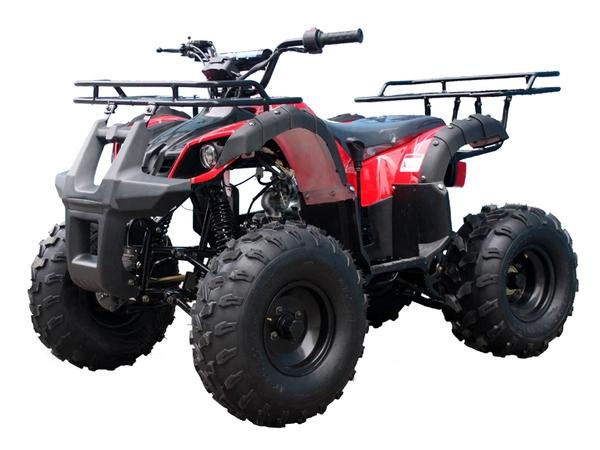

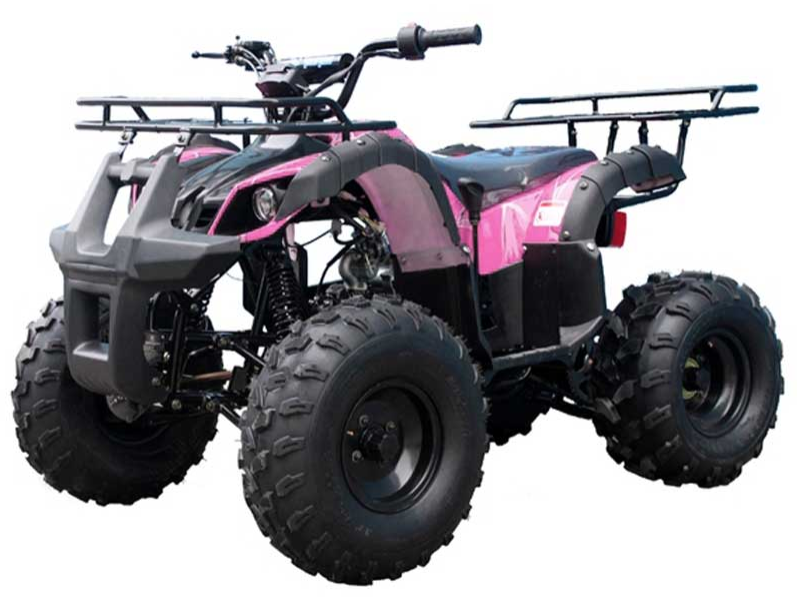

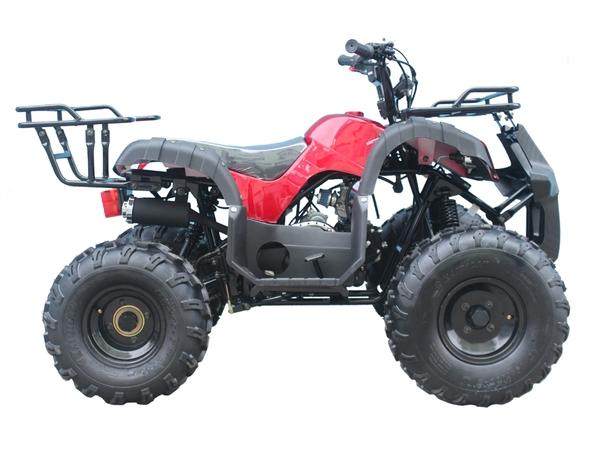

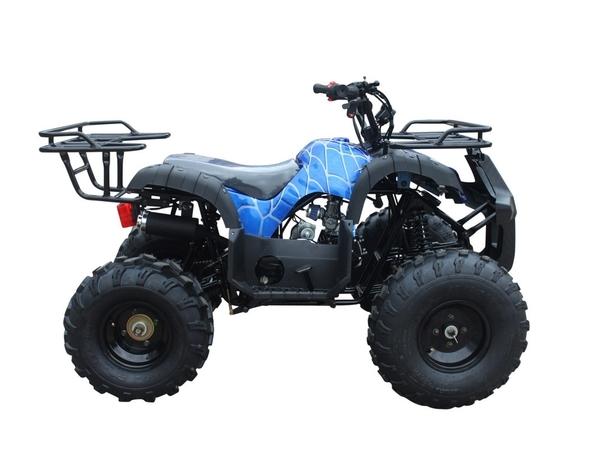

The RPS U8-SP is a 125cc ATV with a 4-stroke single-cylinder engine.
It features electric start, automatic clutch, and front and rear disc brakes.
Engine & Drive
| Specification | Detail |
|---|---|
| Engine Size | 125cc (124 ml) |
| Engine Type | 4-stroke, 1-cylinder |
| Cooling | Air cooled |
| Start Type | Electric start |
| Transmission | Chain driven |
| Clutch | Automatic clutch |
| Gear Selection | 1F / N / R |
| Max Power | 6.0 kW @ 8000 r/min |
| Max Torque | 8.0 @ 5500 r/min |
| Top Speed | 40 km/h |
| Compression Ratio | 9.1:1 |
| Bore x Stroke | 52.4 x 55.5 mm |
| Minimum Fuel Consumption | 367 g/kW.h |
Brakes & Suspension
| Specification | Detail |
|---|---|
| Front Brake | Disc |
| Rear Brake | Disc |
| Brake Distance | 5 m (at 30 km/h) |
Wheels & Tires
| Specification | Detail |
|---|---|
| Front Tire | 19x7-8 |
| Rear Tire | 18x9.5-8 |
Dimensions
| Specification | Detail |
|---|---|
| Seat Height | 600 mm |
| Ground Clearance | 120 mm |
| Carton Size | 1310 x 770 x 640 mm |
Street / Equipment Features
-
Electric start
-
Automatic clutch
-
Gear selector (1F / N / R)
-
Climbing capability: 35°
Assembly & Delivery
• Ships 70% assembled inside metal crate
• Certified technician required for assembly and setup
• Liftgate included
• Residential delivery included
• Shipping insurance included
• Delivery appointment included
• Store pickup available in Dallas, Texas
Warranty
30-day replacement parts only
Labor and returns not covered
